Prod Model: |
YL1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Refrigerant: |
R410A |
Type: |
Window Mounted Air Conditioners |
Capacity: |
18000-24000 BTU |
Usage: |
Room |
Indoor Machine Noise: |
>50dB |
Certification: |
UR |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling Only |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description

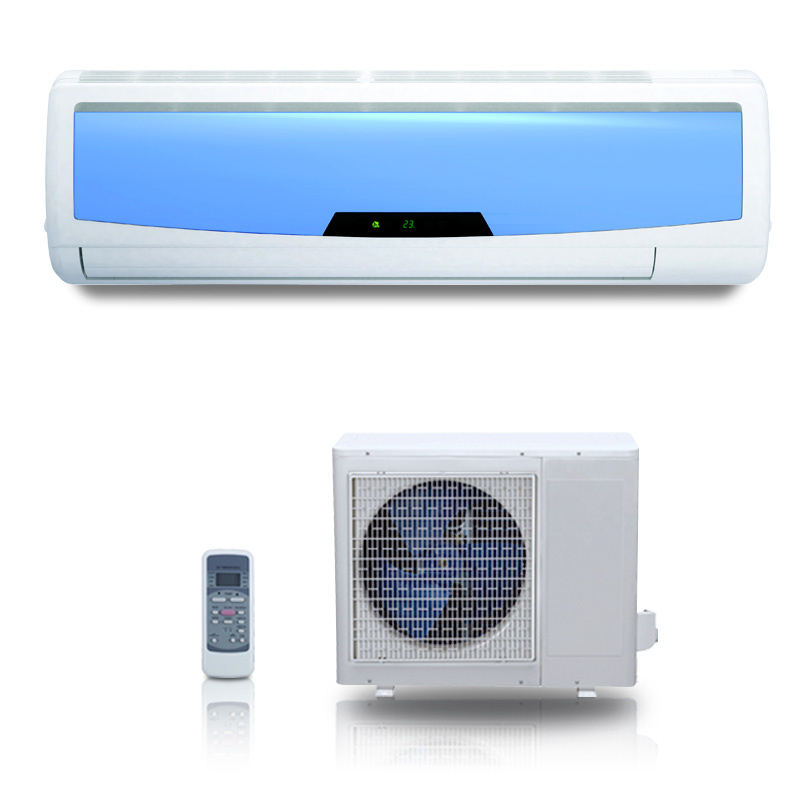

12000 Btu R410a Gas Split Type Air Conditioner
Feature
1. R410a gas split type air conditioner
2. Used the known brand compressor with best quality
3. Sleep mode operation
4. Hydrophilic film aluminum foil
5. Automatic restart function
6. Self-diagnosis and auto-protection function
7. Intelligent defrosting
Specification
Power supply | Ph-V-Hz | 115V~ 60Hz, 1Ph |
Cooling | Capacity | Btu/h | 12000 |
Input | W | 1283 |
Rated current | A | 11.1 |
EER | W/W | 2.74 |
Moisture Removal | L/h | 1.1 |
MINIMUM CIRCUIT AMPACITY | A | 13 |
MAX.FUSE | A | 15 |
Starting current | A | 54 |
Compressor | Model |
| ASM113E1UDZ |
Type |
| ROTARY |
Brand |
| GMCC |
Refrigerant type | ozs | R410A/15.5ozs |
Design pressure | PSIG | 550/340PSIG |
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ9.52(1/4"/3/8") |
Max. refrigerant pipe length | m | 20 |
Max. difference in level | m | 8 |
Connection wiring |
| 3x14#(Optional) |
Plug type |
| 14#x3 |
Thermostat type |
| Remote Control |
Operation temperature | ºC | 17~30 |
Room temperature | Indoor(cooling/ heating) | ºC | 17~32/---- |
Outdoor(cooling/heating) | ºC | 18~43/---- |
Application area | m2 | 16-27 |
Qty'per 20' /40' /40'HQ |
| 128/263/296 |
