| Prod Model: |
1201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
1201 |
| Color: |
Black and White Option |
| Resolution: |
1024*768/800*600 |
| Brightness: |
300CD/M2 |
| Contrase Ratio: |
400:1 |
| Connector: |
VGA(Can Add More If Need) |
| View Angle: |
160 130 |
| Supply Power: |
DC 12V |
| Visual Size: |
246*185mm |
| Brand: |
Hope/OEM |
| Application: |
Computer |
| Aspect Ratio: |
4:3 |
| Feature: |
VGA/HDMI/AV/TV |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
8ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
12inch |
| Optimum Resolution: |
1024*768/800*600 |
Product Description

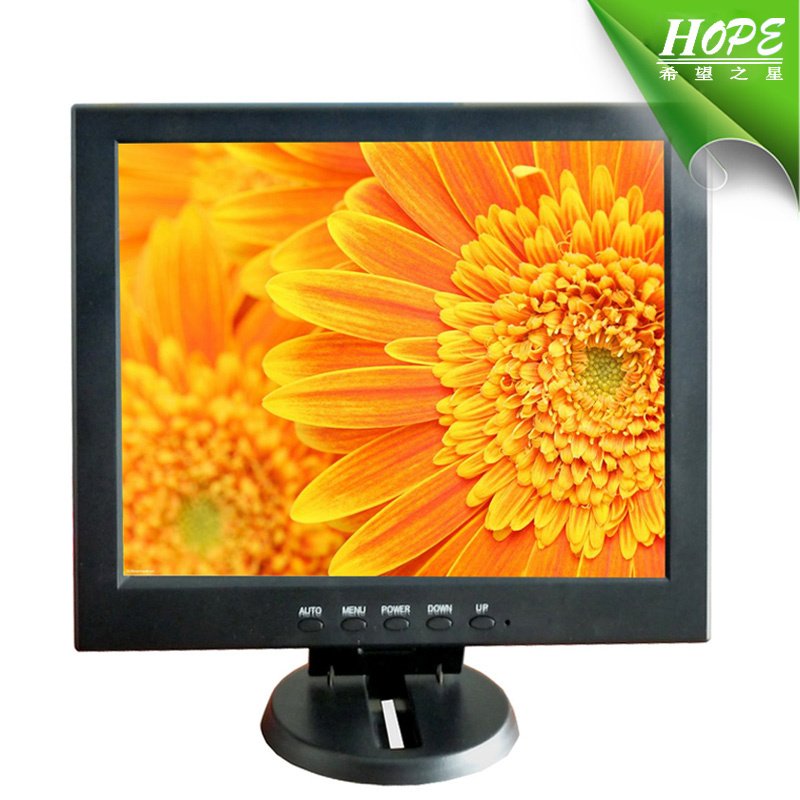

12inch TFT LCD monitor1. Professional manufacturer supply
2. VGA connector,can add HDMI/AV/TV
3. Reliable quality, good price
4. Hot sale model
Pictures:
| Model NO. | 1201 |
| Panel size | 12 inch TFT-LCD |
| Visual size | 246*185mm |
| Standard Resolution | 800*600 and 1024*768 option |
| Number of Colors | 16.2M |
| Brightness | LCD panel:300cd/m 2 |
| Response time | 8ms |
| View angle | Horizontal:160° |
| Vertical:130° |
| Contrase ratio | 400:1 |
| Video input format | (analog) RGB |
| Connector | VGA (D-sub) |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply:100 to 240V AC
(DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90% |
| Net weight | 2.5 Kgs/pcs |
| Gross weight | 3.0 Kgs/pcs |
| Power consumption | Max 30W |
| Setup (optional) | 1) provide wall brackets for wall-mounting,
VESA 75mm |
| 2) provide base to support the monitor |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
| Certificate | CE, IEC
|
| Warranty | 1 year,provide spare parts |
Monitor size
(not include base) | 298*243*44mm |
| Each unit box size | 333*135*315mm |
| Package size | 6pcs in a carton,carton size:650*450*390mm |
Information about us:
|
Model NO. |
1201 |
|
Panel size |
12 inch TFT-LCD |
|
Visual size |
246*185mm |
|
Standard Resolution |
800*600 and 1024*768 option |
|
Number of Colors |
16.2M |
|
Brightness |
LCD panel:300cd/m 2 |
|
Response time |
8ms |
|
View angle |
Horizontal:160° |
|
Vertical:130° |
|
Contrase ratio |
400:1 |
|
Video input format |
(analog) RGB |
|
Connector |
VGA (D-sub) |
|
Frequency |
30~80KHz/60~75Hz |
|
Power supply |
External Power Supply:100 to 240V AC
(DC 12V) |
|
Operation Environment |
Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90% |
|
Net weight |
2.5 Kgs/pcs |
|
Gross weight |
3.0 Kgs/pcs |
|
Power consumption |
Max 30W |
|
Setup (optional) |
1) provide wall brackets for wall-mounting,
VESA 75mm |
|
2) provide base to support the monitor |
|
OSD control |
AUTO,+,POWER,-,MENU |
|
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
|
Certificate |
CE, IEC
|
|
Warranty |
1 year,provide spare parts |
Monitor size
(not include base) |
298*243*44mm |
|
Each unit box size |
333*135*315mm |
|
Package size |
6pcs in a carton,carton size:650*450*390mm |
Shenzhen Hopestar Sci-Tech Co., Ltd. is a new high-tech enterprise, Devoted to the reaearch, development and sales of " Hope" series products, Our products has CCC certificate, Main products including Moniotrs/TVS/all in one / Advertising player.
We offer high quality products and best after sales services, we adhere to the principle of " Credibility frist and service-Oriented, we have set up department of scientific reasearch, management and production, the productino base is 3, 000 squre meters, with a dust-free professional workshop and 4 supporting comprehensive production lines.
Our Hot-selling monitors as below;
7"8"9"10.4"12.1"13.3"14" for car monitor
15.6"17.3"18.5"21.5"23"23.6" for LED monitor
15"17"18.5"19"20"21.5"22". 23"23.6" for LCD monitor
7"8"10.4"12"15"17"19"21.5"22"26"32"42"46"55"65" for touch screen monitor
7"8"10.4"12"15"17"19"21.5"22"26"32"42"46"55"65" for CCTV monitor
7"8"10.4"12"15"17"19"21.5"22"26"32"42"46"55"65" for open frame monitor
Our company has a high quality sales team, we have developed a large number of agents and distributors, established a worldwide sales network and a comprehensive after sales service system.
We are willing to work together with new and old customer for creating a brilliant future.
