| Prod Model: |
S123WU01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
12.3 Inch |
| Product Type: |
Bar Type LCD Display |
| Aspect Ratio: |
2.67:1 |
| Resolution: |
1920(RGB)X720 |
| Brightness: |
1000nits |
| View Angle(L/R/T/B): |
80/80/80/80 (Typ.) |
| Interface: |
40pin Lvds |
| LCD Outline Size(mm): |
308.1X134.86X7.3 |
| Active Area(mm): |
292.32 X109.62 |
| Application: |
Automobile Rearview Mirror |
| Usage: |
LCD Display for Car Rearview Mirror |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |

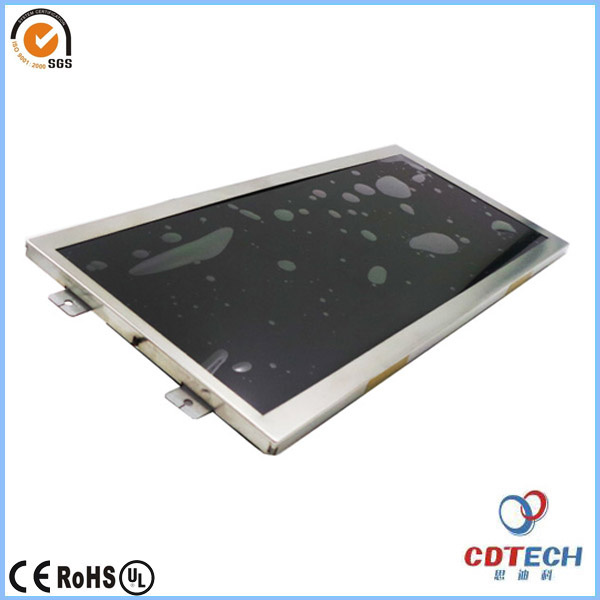

Product Description
CDTech supply Bar-type TFT LCD display screen, the main sizes are 2.9",3.9",4.6",5.8",6.5",7.2",8.8",9.1" etc. we provide you solutions for your special requirements on display sizes.
Bar-type LCD are widely used in:
Household appliances, such as refrigerator, washing machine, air conditioner;
In transportation application -Rail signage, bus, subway, station, airport etc
On public Signage -Bank, store, café, restaurant, elevator, library etc
Gaming , Medical, Vending machine
Customizing design to unlimited application
Product features:
| PN | S123WU01 |
| Screen Size | 12.3" |
| Aspect Ratio (W:H) | 2.7:1 |
| Resolution | 1920(RGB)x720 |
| Outline Size(WxHxD)(mm) | 308.1x134.86x7.3 |
| Thickness(mm)(Typ.) | 7.3 |
| Active Area(mm)(WXH) | 292.32 x109.62 |
| Dot Pitch(mm)(HxV) | 0.05075X0.15225 |
| Operation Temperature( ºC) | -30-85 ºC |
| Storage Temperature (ºC) | -40-95 ºC |
| Display Mode | TN,NB,Transmission |
| Luminance (cd/m² (Typ.) | 1000 |
| Response Time(Typ.)(Tr/Td) (ms) | 12/13 |
| Contrast Ratio (Typ.) (transmission) | 1000:1 |
| Color | 16.7M |
| Viewing Angle (Typ.)(CR≥10) (L/R/T/B) | 80/80/80/80 |
| Viewing direction | ALL |
| Weight (g) | TBD |
| Signal interface | 2 port 40 PIN LVDS |
| Touch screen | Without |
| Lifetime (Typ.) (hour) | 5K |
| LED numbers | 10*4*2 |
| Driver IC | TBD |
CDTech is a manufacture in mainland China, specializing in custom-made TFT LCD module, RTP, CTP and HMI solutions. With over 6 years running, we have numerous satisfied and repeated customers; Philips, Devilbiss, Midea Group, CHIGO Group, Harman Kardon, ABB, Micronet etc. Are our cooperative partners. Our LCD size is from 1.77 inch to 42 inch, widely used in car display system, medical equipment, industrial application and many other household appliances and handheld devices.
CDTech supplies Bar-type TFT LCD display screen, the main sizes are 2.9", 3.9", 4.6", 5.8", 6.5", 7.2", 8.8", 9.1" etc. We provide you solutions for your special requirements on display sizes.
Bar-type LCD are widely used in:
Household appliances, such as refrigerator, washing machine, air conditioner;
In transportation application -Rail signage, bus, subway, station, airport etc
On public Signage -Bank, store, café , restaurant, elevator, library etc
Gaming, Medical, Vending machine
Customizing design to unlimited application
