| Prod Model: |
FBT-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speaker Material: |
Plastic |
| Amplification Type: |
Passive |
| Usage: |
Portable Player |
| SNR: |
91-100dB |
| Structure: |
Closed Enclosure |
Product Description

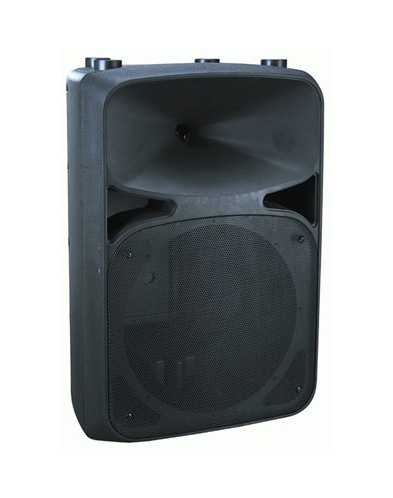

12" 2-way PA Speaker Box/Plastic speake/Cabinet specification
System type: Passive 12ins, 2-way
Sensitivity (dB 1W at 1m): 97dB
System impedance: 4 or 8ohm
Frequency response: ± 3dB, 50 to 18kHz
LF drivers:
LF driver size (mm/inches): 305mm/12-inch, 4/8ohm
LF driver magnet size: 50oz
LF voice coil size: 63.5mm/2.5-inch
HF section:
HF voice coil size: 34mm/1.35-inch, 8ohm
HF exit size: 25mm/1 inch
HF type: Compression driver
HF diaphragm material: Titanium
Cross over section:
Crossover frequency/filter: 2.3kHz, 24dB per octave Linkwitz-Riley
HF driver protection: Independent LF and HF limiters
Ningbo ASM Electronics Co., Ltd., has been specializing in car & PA audio system, including car CD/VCD/DVD player, amplifiers, capacitors, EQ, pre-AMP, speaker & speaker box, cables and other audio accessories. As a suppliement, a package of auto accessories are supplied to meet various needs of our customers.
As a manufacturer with an area of 5000m², 6 production lines and over 100 employees, our affiliated factory manufacturers mainly speaker and speaker box. Thanks to a perfect system of quality assurance, welltrained and skilled workers, a professional and experienced technical and inspection team, and such testing system as DAAS, we are practising our promise: Excellent In Sound.
