Prod Model: |
THR12UB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Speaker Box Origin: |
Ningbo, China |
Speaker Box Brand: |
Tonoch, ODM, OEM |
Speaker Box Power(RMS): |
200W+45W |
Speaker Box Spl(1W/1m): |
115±2 Db |
Speaker Box Freq Response: |
30Hz-20kHz |
Speaker Box Lf: |
1×15" Woofersv |
Speaker Box Hf: |
1×1" Driver |
Speaker Box Power Supply: |
Power Supply |
Amplification Type: |
Active |
Speaker Material: |
Plastic |
Usage: |
Computer |
Adjusting Method: |
Knob |
Structure: |
Floorstanding Speaker |
Function: |
Bluetooth |
SNR: |
>100dB |
Product Description

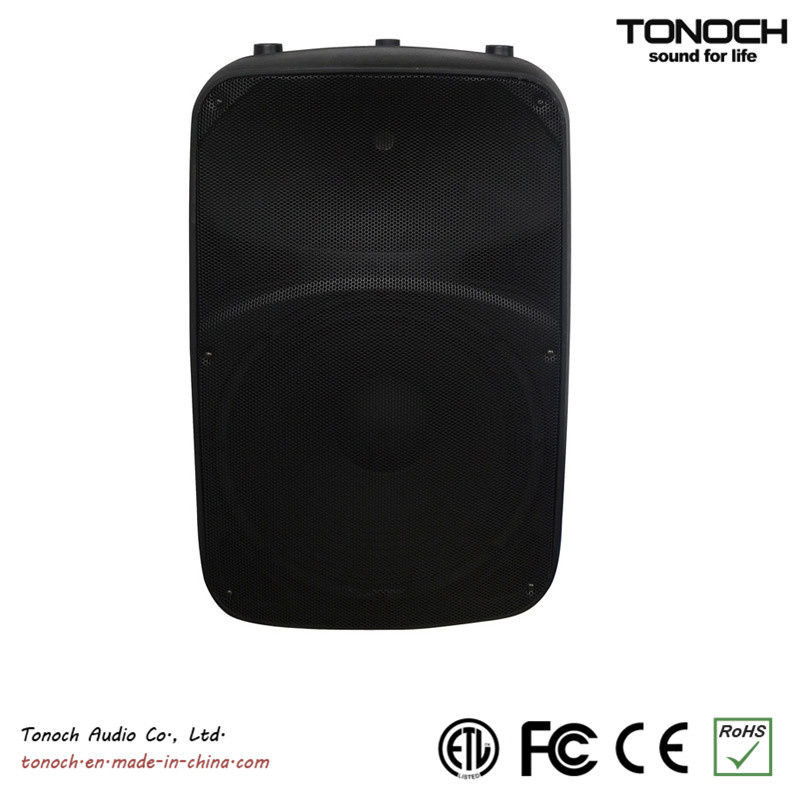

12" 2-Way Plastic PA Speaker Box
INTRODUCTION:
TH Family plastic speaker original design by Tonoch engineering and design team, with the high power design that can widely used on diversiform studio, movie studio, news promulgate center, video education center, large stage, playhouse music and so on.
FEATURES:
1. High density and light weighted plastic enclosure
2. Can be equipped with 5 band EQ, light.
3. LED MP3 player with the model of USB/SD/FM/RC
4. Adjustable Bass and Treble that easy to operate
5. Range voltage input can be chose.
Model | THR08UB | THR10UB | THR12UB | THR15UB | THR215UB |
Discription | 8" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player + USB/SD Slot + FM + Bluetooth | 10" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player + USB/SD Slot + FM + Bluetooth | 12" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player + USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth | 15" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player + USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth | 2×15" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player + USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth |
Power(RMS) | 100W+20W | 130W+20W | 150W+45W | 200W+45W | 300W+45W |
SPL(1W/1m) | 108±2 dB | 115±2 dB | 108±2 dB | 115±2 dB | 120±2 dB |
Freq response | 20Hz-20KHz | 30Hz-20KHz | 20Hz-20KHz | 30Hz-20KHz | 20Hz-20KHz |
Input/ output connectors | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA |
LF | 1×8" woofer | 1×10" wooferSV | 1×12" woofer | 1×15" wooferSV | 2×15" wooferSV |
HF | 1×1" driver | 1×1" driver | 1×1" driver | 1×1" driver | 1×1" driver |
Power supply | 230V/110V | 230V/110V | 230V/110V | 230V/110V | 230V/110V |
Weight(G.W.) | 16kgs | 18kgs | 16kgs | 18kgs | 31kgs |
Package(W×D×H) | 430×360×635mm | 485×400×740mm | 430×360×635mm | 485×400×740mm | 485×400×1160mm |
Container | 20"GP 40"GP 40"HQ | 20"GP 40"GP 40"HQ | 20"GP 40"GP 41"HQ | 20"GP 40"GP 42"HQ | 20"GP 40"GP 43"HQ |
310pcs 620pcs 750pcs | 200pcs 400pcs 475pcs | 310pcs 620pcs 750pcs | 200pcs 400pcs 475pcs | 125pcs 250pcs 300pcs |
|
Other functions and options you can choose:
Active speaker, passive speaker, mono - amp, bi - amp, digital amp, analog amp, LED mp3 player, LED mp3 player, LCD mp3 player, FM Studio, remote control, wireless mic, bar.
Introduction of TONOCH
There are more than 500 employees in factory, including 15 technicians, 20 sales persons, 18 QC, etc. At present, there are 6 assembly lines for the amplifier and 6 lines for the speaker. Moreover, Tonoch has invested for injection machine, SMT and mould toolings which are exclusive for it.
Quality is controlled very well because almost all of the parts are made by itself and continuous improvement are made on products. Meanwhile, we are making every effort to controlled the cost as low as possible.
Our goal is to provide the best quality products at the lowest price to the customers and the customers always put in the first.
Due to the above advantages, we obtain quite good reputation from the customers.
Together we can do better, together we can make audio better!
Tonoch is your best choice!
Once you have any idea concerning new audios, pls contact me. OEM ODM are both welcome. Welcome to visit our factory! Any question, send inquiry to me!
FAQ
Q: What's your main product lines?
A: Portable active speaker, economic active speaker, economic PA combo, professional active speaker, professional PA combo, class - D active speaker, bi - amp active speaker, 1000w class - D speaker, subwoofer PA combo, active PA subwoofer, portable battery speaker, economic battery speaker, professional battery speaker, portable PA system, economic PA system, power box mixer, professional power amplifier, RGB light woofer, and other accessories.
Q: What kind of functions do the speakers have?
A: Bluetooth, folder mp3, USB, FM, portable, with LED light, Ipod dock, remote, EQ effect, for your option.
Q: What certificate do you provide for customer?
A:Factory Audit are welcome. Quality is guaranteed, products pass CE, ROHS, FCC international authentication.
Q: Do you accept OEM?
A: Yes, OEM and ODM are both welcome.
Tonoch Audio Co., Ltd. As one of the professional mnaufactuer of audio equipment located in Ningbo, China.
Tonoch, with the sole aim of being the largest supplier of high quality, high value audio equipment in the world audio market, all Tonoch's products were and designed to one simple philosophy-it is the sound to your life.
All Tonoch's products were and are designed to one simple philosophy, that is the sound of your life. With the update technology, unique location, professional staff, our products enjoy a lot both in quality and price. We know that high quality is the key which makes Tonoch distinct fantastic from the same field. This is the premise on which Tonoch structures its company philosophy. Tonoch uses only the highest quality materials that meet or exceed industries' standards for each product. These materials are then used in manufacture under the strictest quality control to produce the finest, cost-effective products in the audio equipment industry.
The quality of our after-sales service and support is best illustrated by the large proportion of Tonoch customers who purchase further consoles. Relationship marketing is a key focus of our business and we appreciate your customers. Our mission is to ensure Tonoch remains the preferred choice for your audio requirements. Tonoch staff is a group of professional, passion, energy which dedicate to better ourselves as receiving confirmation of our work from the same line. We will walk together hand in hand with you to develop another audio wonderland.
Together we can make music matter, together we can do better.
