| Prod Model: |
HAL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

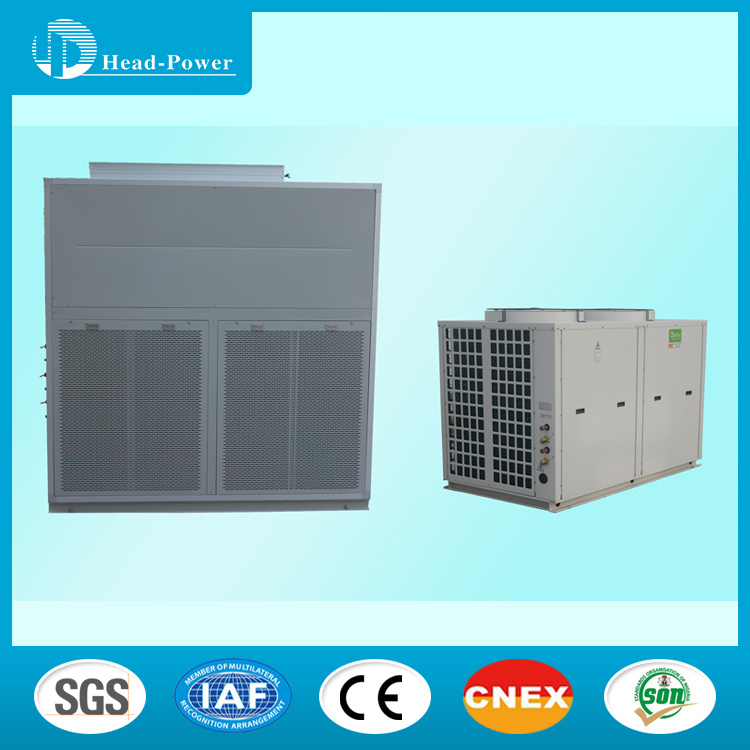

11kw 3 Phase Duct Split Air Conditioner |
| Cooling Capacity: |
8-176kw |
| Heating Capacity: |
8.6-184kw |
| Air Flow: |
1350-32500 CMH |
| Medium: |
R22/R407c/R410A/R134A, etc, Choose by Clients |
| Compressor Brand: |
Hitachi, SANYO, Panasonic, Copeland,etc |
| Compressor Type: |
Hermetic Scroll |
| Evaporator: |
Copper Tubes with Aluminum Fins |
| Condenser: |
Copper Tubes with Aluminum Fins |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Split |
| Certification: |
SGS |
| Condition: |
New |
| Operating Voltage: |
220V, 380V, 160V, 440V etc. |
| Application Fields: |
Factory, Shop etc |
Product Description
1)The Feature of 11kw 3 phase duct split air conditioner
a.Diversified applications
According to different air duct lengths of the direct blowing type, the inddor units can be divided into low and hight static pressure types, and the wind pressure of the high static pressure unit can be regulated; anti-mould filter is used, and fresh air can be introduced to ensure health.
b.Comportable and tranquil
The inddoor units enjoy ultra low niise design with high- quality heat and sound insulating material used on the wall; ultra-low noise double air intake centrifugal fan is used with specialized vibration absorption;
c.High-quality indoor air
If air duct is used for air supply, uniform distribution of refrigeration and air quaitity can be achieved,and fresh air can be introduced, greatly improving indoor air quality.HEPA sterilization device and dust filter are optional by users and can effectively tkill the viruses in the air and clean the air ,reliving you from air conditioner illness.
2)Product model
| Model | HAD03(H) | HAD05(H) | HAD06(H) | HAD08(H) | HAD10(H) | HAD12(H) | HAD15(H) | HAD18(H) | HAD20(H) | HAD25(H) | HAD30(H) | HAD36(H) | HAD40(H) | HAD50(H) | HAD60(H) |
| Unit performance | Cooling capacity | kw | 7.8 | 13 | 15.6 | 20.8 | 26 | 31.2 | 39 | 46.8 | 52 | 65 | 78 | 93.6 | 104 | 130 | 156 |
| Heating capacity | kw | 8.1 | 13.6 | 16.5 | 22.1 | 27.5 | 33 | 41.5 | 50.2 | 56.8 | 69 | 82 | 98 | 110 | 136 | 162 |
| *Electric heating | kw | 3 | 4 | 5 | 6 | 8 | 9 | 12 | 15 | 16 | 18 | 25 | 30 | 32 | 36 | 50 |
| Air flow | m3/h | 1700 | 2600 | 3100 | 4100 | 5400 | 6500 | 8000 | 9600 | 10800 | 13800 | 16000 | 19500 | 20500 | 25500 | 27000 |
| External static pressure | Pa | 80 | 100 | 110 | 110 | 120 | 180 | 200 | 200 | 220 | 230 | 230 | 260 | 300 | 340 | 350 |
| Power Supply | 220V | 380V/3N~50Hz |
| Refrigerant | Type | R22/R407C |
| Volume control | expansion valve/capillary tube |
| Charge | kg | 3.5 | 5 | 5 | 5+3.5 | 5*2 | 5.6*2 | 5*3 | 5.6*3 | 5*4 | 5.6*4 | 10*2+5 | 10*3 | 10*2+5 | 10*4 | 10*5 |
| Compressor | Type | flexible hermetic scroll compressor |
| Power | kw | 2.25 | 3.75 | 4.5 | 3.75+2.25 | 3.75*2 | 4.5*2 | 3.75*3 | 4.5*3 | 3.75*4 | 4.5*4 | 9*2+3.75 | 9*3 | 9*3+3.75 | 9*4 | 9*5 |
| Evaporator | Type | copper tube with aluminium fin |
| Fin type | Slotted-type two-way aluminum fin/honeycomb type aluminum fin |
| Indoor unit | Fan | Type | centrifugal type |
| Driving method | direct-drive | belt-drive |
| Power | kw | 0.25 | 0.55 | 0.55 | 0.28*2 | 0.55*2 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Unit Dimension | L | mm | 800 | 1000 | 1100 | 1250 | 1250 | 1450 | 1650 | 1720 | 1800 | 1800 | 2000 | 2100 | 2200 | 2400 | 2550 |
| W | mm | 500 | 500 | 500 | 600 | 600 | 800 | 800 | 800 | 800 | 900 | 900 | 1000 | 1000 | 1300 | 1500 |
| H | mm | 1400 | 1500 | 1500 | 1600 | 1600 | 1700 | 1800 | 1950 | 1950 | 2000 | 2000 | 2200 | 2200 | 2250 | 2400 |
| Weight | kg | 70 | 90 | 100 | 140 | 160 | 225 | 280 | 320 | 350 | 440 | 480 | 580 | 630 | 700 | 815 |
| Noise level | dB/(A) | <50 | <52 | <52 | <52 | <56 | <60 | <65 | <65 | <67 | <67 | <67 | <67 | <68 | <70 | <72 |
| Outdoor unit | Compressor | Type | Hermetic Scroll |
| Power | kw | 2.25 | 3.75 | 4.5 | 3.75+2.25 | 3.75*2 | 4.5*2 | 3.75*3 | 4.5*3 | 3.75*4 | 4.5*4 | 9*2+3.75 | 9*3 | 9*3+3.75 | 9*4 | 9*5 |
| Condenser | Type | tube with fin |
| Fin type | Slotted-type two-way aluminum fin |
| Blower | Type | ultra-low noise axial type |
| Driving method | direct-drive |
| Power | kw | 0.18 | 0.25 | 0.25 | 0.55 | 0.71 | 0.75 | 1.1 | 0.71*2 | 0.71*2 | 0.75*2 | 1.1*2 | 1.5*2 | 0.75*3 | 1.1*3 | 1.1*4 |
| Unit Dimension | L | mm | 860 | 970 | 840 | 940 | 1050 | 1350 | 1350 | 1850 | 1950 | 2400 | 2450 | 2300 | 2800 | 3000 | 3000 |
| W | mm | 300 | 350 | 840 | 940 | 1050 | 1050 | 1200 | 1050 | 1050 | 1050 | 1100 | 1100 | 1100 | 1100 | 1100 |
| H | mm | 830 | 1250 | 950 | 1250 | 1300 | 1300 | 1300 | 1150 | 1150 | 1250 | 1400 | 1400 | 1500 | 1500 | 1600 |
| Weight | kg | 100 | 130 | 140 | 210 | 240 | 360 | 380 | 450 | 480 | 650 | 750 | 860 | 920 | 1360 | 1450 |
| Noise level | dB(A) | 62 | 63 | 63 | 67 | 68 | 69 | 70 | 71 | 71 | 72 | 74 | 75 | 76 | 77 | 78 |
| Connecting tubes | Refrigerant gas tube | Size | 15.9 | 19.1 | 19.1 | 19.1+ 15.9 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 28×2 +19.1 | 28 | 28×3+19.1 | 28 | 28 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 1 | 3 | 1 | 4 | 5 |
| Refrigerant liquid tube | Size | 9.52 | 12.7 | 12.7 | 12.7+ 9.52 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 15.9× 2+12.7 | 15.9 | 15.9×3+12.7 | 15.9 | 15.9 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 1 | 3 | 1 | 4 | 5 |
| Connection method | flare opening | welding+flare opening |
3)Company Culture:
Serve the society with technology, serve the customer with heart, become a first level air conditioning company in China.
Innovation, loyalty, responsibility, value.
Provide customer with high quality product and considerable service.
4)Our services:
1) Changing on material, color, shape, construction:Acceptable.
2) General inspection on fixing before packing
4) We can offer you premium quality , competitive price, prompt delivery and low minimum orders.
5) OEM,ODM service.
5)Project and client:
No |
Project Name ( China) |
Industry |
Area |
1 |
Zhongshan people hospital |
Hospital |
Zhongshan |
2 |
Hankou Railway Station, Union Hospital, Wuhan Branch |
Hospital |
Wuhan |
3 |
Wuhan City, Wuchang Railway Hospital |
Hospital |
Wuhan |
4 |
Three townships Zhongshan People's Hospital |
Hospital |
Zhongshan |
5 |
Zhujiang hospital of Guangzhou |
Hospital |
Guangzhou |
6 |
Zhongshan Garden Hotel |
Hotel industry |
Zhongshan |
7 |
Western Sunshine Hotel, Zhongshan |
Hotel industry |
Zhongshan |
8 |
Shunde Golden Hotel |
Hotel industry |
Foshan |
9 |
East China Hotel in Guangzhou |
Hotel industry |
Guangzhou |
10 |
Nanyou Zhuhai hotel |
Hotel industry |
Zhuhai |
No |
Company Name ( Overseas) |
Product |
Country |
1 |
SB Global Energy |
Air cooled ducted split |
Holland |
2 |
Bentos pharmaceutical products Ltd. |
Clean air conditioners |
Nigeria |
3 |
SOGAMEF |
Air cooled chiller |
Gabon |
4 |
SeaService shipping |
Marine air conditioner |
Russia |
5 |
EURO STANDARD LIMITED |
Fresh Air Handling Unit |
New Zealand |
6 |
Henrich trading center |
Air cooled/water cooled air conditioner |
Philippines |
7 |
Marine Engineering Systems Pte.Ltd |
AHU, chiller,etc |
Singapore |
8 |
Elektro Werner Heitzinger |
Heat recovery air handling unit |
Austria |
9 |
Nyborg Marine Equipments AS |
Marine Air Handling Units |
Norway |
10 |
Wilfred Limited |
Heat recovery air handling unit |
UK
|
Guangdong Head-Power Air Conditioning Co., Ltd., located in Shiling Chenbian Industry Area, Shishan town, Nanhai District, Foshan, Guangdong, China. We are a professional manufacture in HVAC filed, engaged in air conditioning area for over ten years. Our products include chillers, ducted air conditioners, packaged air conditioners, air handling units, etc.
Facilities:
Our factory has introduced many advanced equipments and technologies from aboard and built the most authoritative platform for product testing. Besides we have a close relationship with Central South University in Hunan Province and cooperation with some famous institutes. With so strong technical background, we make sure all the products meet the technical standards of the country.
Products:
We provide a wide range of products in Air Conditioning and Refrigerating, including Water & Geothermal Source Heat Pump Chiller, Air Cooled Chillers, Water Cooled Chiller, Water Source Heat Pump, Air cooled Scroll Water Chillers, Ducted Split Air Conditioner, Air Source Heat Pump Water Heater, Fan Coil Unit, Air Handling Unit, Heat Recovery Fresh Air Handling Unit, Precision Air Conditioners, Dehumidifiers, etc.
Besides we can provide Integrated Solutions for Cooling, Heating and Hot Water. This system is specially designed for energy conservation. It is suitable for building that needs to cool in summer and heat in winter, which also needs hot water all the year round.
Certificates:
The products of our company have the characteristics of low noise, energy conservation and high efficiency. Head-Power follows ISO9001 international quality control system and ISO14001 international environment control system strictly, thus our product quality and services are ensured.
Welcome friends both at home and abroad to choose our products, and we'll provide you with the best products and services.
The aim of our company:
Provide high quality products, satisfy every client!
