| Prod Model: |
1080P HDMI cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Logo: |
According to Customer's Request |
| Insulation: |
PE(HDPE) |
| Jacket: |
PVC(Lszh) |
| Operating Temperature Installation: |
0~50/Operation: -30~+75 |
| Application: |
Mobile Phone |
| Material: |
Copper |
| Interface Type: |
HDMI |
| Feature: |
Waterproof |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Pin: |
19pin |
| Power Cable Type: |
19pin |
| Printer Cable Type: |
HDMI |
| Color: |
Option |
Product Description

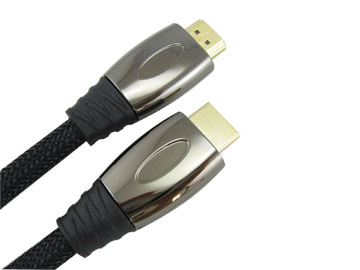

1080P HDMI cable
Gold plug, two magnet, 28awg
HDMI 1.3 CABLE Connector: Nickel plated or gold plated
AWG32/30/28/26/24
Conductor: Tinned and silver-plated copper or aluminum
Braid: Tinned and silver-plated copper or aluminum
Custonmized specifications:
Nylon mesh(sleeve)ferrite core/PVC molding/ABD molding/Zinc
Jacket: Black or on request
Length: 1.5m/3m/5m/on request
Material: RoHS compliance test approved
HDMI ATC compliance test approved
Simply HD compatibility test approved
A premium high performance quality HDMI-HDMI cable suitable for use with HDTV, HOME Theater, Play Station 3, Blu Ray Players, xBox 360. High Definition Cable&Dish Receivers, and all other deviceds with HDMI inputs.Features:
1.3D - Capability to pass 3D stereoscopic signal formats
2.4K - 4096X2160/24 video resolution support for commercial applications such
As Digital Movie Theaters, CAD, Post Production, Graphics and etc.
3.HDMI Ethernet Channel - Allows 100 MB/s Ethernet between two HDMI connecting
Devices
4.Audio Return Channel - Allows audio to be returned from display back to HDMI
Source for amplification and display
5.Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) resolutions
Up to 1080P (60Hz & 50Hz)
6.SD & HD:480I, 480p, 720p, 1080I, 1080P, 1440p
7.VESA / DVI:From 640X480p up to 1920X1200p
ELECTRICAL:
100% Open&Short Test
Voltage:DC300V 5M ohm/10ms
Insulation Resistance:10MΩMin
Contact Resistance:2 ohm max
Working Temperature:-25C-80C
Optional class:
1.Standard HDMI cable
2.High Speed HDMI cable
3.Standard HDMI cable with Ethernet
4.High Speed HDMI cable with Ethernet
PACKING:
Polybag with sticker
Giftbox, color box
Blister, bubble or slide blistter available, 20PCS/box, 2 box to an monther carton.
