| Prod Model: |
Audio Tube Earphone For Two Way Radio TC-813 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Hys |
| Country Of Origin: |
Fujian, China |
| Product Name: |
Audio Tube Earphone for Two Way Radio Tc-813 |
| Od: |
16mm |
| Impedance: |
90ohm±10% |
| Sound Pressure Level: |
90dB±3dB |
| Rated Power: |
100MW |
| Size: |
9.7*5.0mm |
| The Type: |
Electret Microphone |
| Sensitivity: |
-36dB±2dB |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Use: |
Call Center or Office |
| Earpad Size: |
Medium |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
All Radio Connector |
Product Description

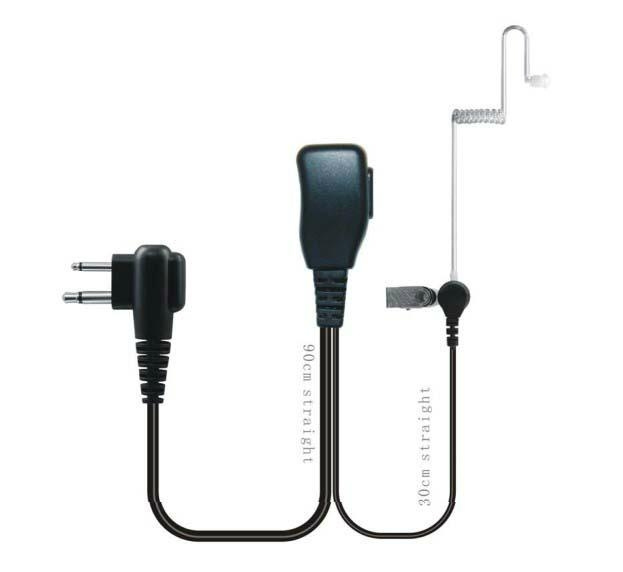

100mW Audio output Audio Tube Earphone For Two Way Radio TC-813
1. Surveillance style earphone can be hidden very well.
2. PU cable compliance RoHS.
3.High audio quality
4.Available for Icom, Standard, Yaeasu and Motorola ect brands.
SPK:
Size:16mm
Frequency:200-5000Hz
Audio pressure level:90dB±3dB
Impedance:90Ω±10%
Audio output:100mW
Microphone:
Size:9.7*5.0mm
Frequency:20-16000HZ
Sensitivity:-36dB±2dB
Impedance:2.2k Ω
| Speaker: |
| Speaker size: | 16mm |
| Sound pressure level: | 90Ohm±10% |
| Impedance: | 90dB±3dB |
| Audio output: | 100MW |
| Microphone: |
| Size | 9.7*5.0mm |
| Sensitivity: | -36dB±2dB |
| Impedance: | 2.2K Ω |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
