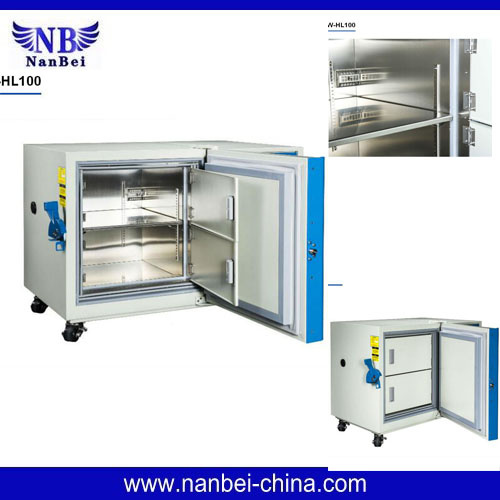

| Prod Model: |
DW-HL100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
100 L |
| External Size. (Wxdxh) Mm: |
720X793X1000 |
| Inside Size (Wxdxh) Mm: |
450*450*500 |
| Input Power: |
800W |
| Weight (N.T / G.T): |
120/140kg |
| Feature1: |
Ultra-Low Temperature Freezer |
| Feature2: |
Microprocessor-Based Temperature Controller |
| Feature3: |
Upright Type of 100L Freezer |
| Feature4: |
Stainless Steel Interior |
| Feature5: |
with Temperature Printer |
Product Description
The Ultra-low Temperature Freezer offers a wide variety of research and storage applications,such as low temperature scientific experiments,preservation of plasma,biomaterial,tunny, biological product,and testing low-temperature-resistant properties of military product.It is suitable for blood bank,hospitals,sanitation and antiepidemic,sanitation,research institutes,electronic industries,university laboratories,military in dustries,pelagic fishery companies.
Control System:
Microprocessor-based temperature controller, -10ºC~-86ºC can be set freely , controlling precision is 1ºC, Digital temperature display.
Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated
Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.
Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.
Structure Design:
Upright type , Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing
Front opening lockable door with full height handle, with Vacuum release port
Adjustable 2-3 stainless steel shelves with inner door, double silicon gasket seal.
Two-times foaming technology. 100-155mm foaming insulation , with VIP+.
With temperature printer, record 7days data. 72 hour battery back up for printer and controller display.
Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.
Refrigeration System:
Imported Danfoss compressor, Tow units compressors in parallel connection, to reduce noise and improve the cooling temperature come to -86ºC steady.
Fan electromotor with internationally famous of Germany EBM
China Patent technology of mixture refrigerant, which composed of R134a,R404a,R23,R410A,N2 and so on, CFC free
Certificate: ISO9001, ISO14001,ISO13485
Specs list:
| Model | Capacity | External size.
(WxDxH) mm | Inside size
(WxDxH) mm | Input power | Weight
(N.t / G.t) |
| DW-HL100 | 100 liters | 720x793x1000 | 450*450*500 | 800W | 120/140KG |
| DW-HL218 | 218 liters | 940x840x1552 | 582x470x768 | 1000W | 225/250KG |
| DW-HL328 | 328 liters | 940x840x1999 | 580x450x1200 | 1200W | 320/350KG |
| DW-HL388 | 388 liters | 940x840x1999 | 740x450x1200 | 1200W | 330/360KG |
| DW-HL538 | 538 liters | 940x840x1999 | 662x600x1330 | 1500W | 360/380KG |
| DW-HL668 | 668 liters | 996x1075x1997 | 815x667x1200 | 1500W | 400/420KG |
| DW-HL768 | 768liters | 996x1190x1997 | 930x665x1200 | 1500W | 420/450KG |
| DW-HL828 | 828liters | 1230x996x2056 | 930x710x1308 | 2000W | 430/460KG
|
