| Prod Model: |
HW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Refrigerator Truck |
| Emission Standard: |
Euro 2 |
| Horsepower: |
251-350hp |
| Condition: |
New |
| Transmission Type: |
Manual |
| Certification: |
ISO9000 |
| Fuel: |
Diesel |
| Payload: |
30T |
| Engine Type: |
4 Stroke |
Product Description

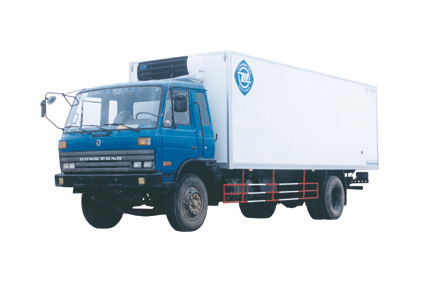

Refrigerator truck, 10 ton load
Cooler truck, dongfeng chassis, cummins diesel engine, 160 PS
Refrigerator van, foam in the middle, steel/GRP in the surface, thickness is 80-100 mm
Temperature: Minus 18 celsius degree
Van Refrigerator Truck is also called Refrigerated van Truck refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck, etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods, such asfrozen foods, milk products, vegetable, fruit, vaccine, medicines, etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Note:
1. This Van refrigerator truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue, overall thickness is 10cm. (optional 20cm)
2. Appearance of smooth, flame retardant type insulation material, food-grade gelcoat, seamless whole panel
3. Refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength, light weight, good chemical stability, long life, etc.
4. Factory direct sale, professional, This Truck adop 4*2 truck chassis with 109hp engine, economical, practical, Min temperature be dropped to -18° C
|
Whole Truck main technical parameter |
|
Product Name |
JAC Van Refrigerator Truck |
Overall Dimension(L*W*H)(mm) |
5995 ×1910×2900 |
|
Loading capacity(ton) |
Approx 10 ton |
Compartment Dimension(mm) |
4200 ×1750×1800 |
|
Curb weight(kg) |
2700 |
Approach/ departure angle ( ° ) |
24/14 |
|
Wheelbase(mm) |
3308 |
Axle number |
2 |
|
Front/ rear suspension(mm) |
1105/1582 |
Max Speed (km/h) |
95 |
|
Cab capacity |
2 or 3 |
Cab type |
Single row |
|
Chassis Technical Parameter |
|
Chassis Model: |
HFC1045K103 |
Chassis Manufacturer: |
JAC Motor Co., Ltd |
|
Brake System |
Air brake |
Transmission type: |
Manual with 5 shift |
|
Number of Tire |
6 with a spare |
Leaf Spring number: |
3/16 |
|
Tire size |
6.50-16 8PR,6.50R16 8PR |
Traction Type: |
4*2 |
|
Engine specification |
|
Engine Model: |
HFC4DA1-2B1
|
Engine Brand |
JAC Motor Co., Ltd |
|
Emission stand |
Euro3 |
Displacement(ml) |
2771 |
|
Fuel type: |
diesel |
Power(kw) |
80(109hp) |
|
Warranty |
12 months, from the date of supply |
|
other Equipment or performances |
1. Don't open at the top, optional open side door |
|
2. Equipped with SONGHAN H300A refrigeration unit(optional other brand) |
|
3. Minimum temperature can be dropped to -18 °C. |
|
4. Material: FRP inside and outside, 10cm thickness polyurethane foam middle. |
