| Prod Model: |
TF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touch Points: |
2 10 Points Touch |
| Software: |
Free Education |
| LED Resolution: |
1024 X 1080 |
| Touch Resolution: |
32767 X 32767 |
| PC Connection: |
International OPS Mini PC |
| Touch Frame Warranty: |
3 Years |
| Language: |
28 Languages |
| Certificates: |
CE, FCC, ISO, RoHS |
| Touch Tool: |
Finger/Pen Free Battery/Any Opaque Things |
| System: |
Windows/Mac/Linux/Andrioid |
| Screen Size: |
>60 Inches |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
OEM Is Available |
Product Description

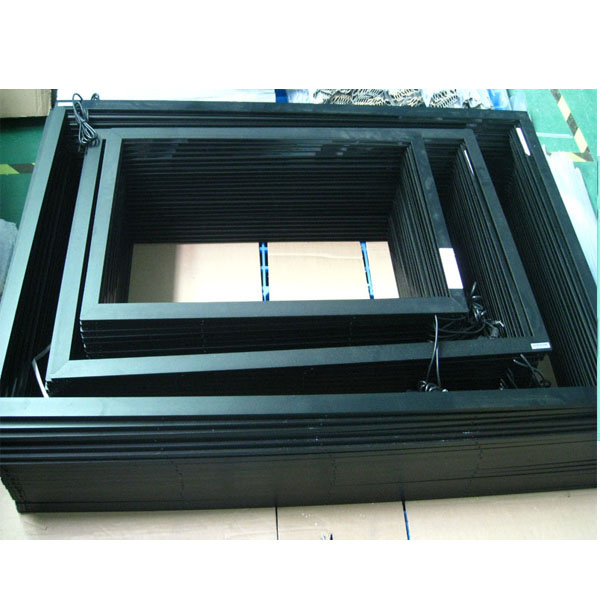

10 Point Portable IR Touch Frame for LCD& LED Monitors
IR Large multi touch screen frame:
1.2- 32 touch points
2. OEM service
3.IR multi touch screen panel
4.Free education software
Touch screen overlay can transform your LCD/LED Screen or projection surface into an interactive touch screen. The screen overlay is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the overlay
IR Touch kit :
Available size: 32",37",40", 42", 46", 47", 50", 52", 55", 58",60", 61", 63", 65", 84", 100", 103", 110", 150".
Features:
Infrared touch
Finger touch.
Easy to install or remove, no need to open up the monitor or computer case.
Eliminates the electrostatic and reduces the radiation generated from the monitor.
Activated on touch by almost anything - finger, fingernail, gloved hand or stylus.
Remain left-right mouse-button functions on screen. |
Touch function | 1. support two or multi touch point write under Win7&8 2.Finger touch Gesture control under single touch (zoom in/out ,rotate,turn page)
3.supoort double system operate,singal touch and dual touch freely switch . |
|
| Performance |
|
| External size | 750*1279*11mm ±2mm |
| Toughened glass thichness (can choose) | 4mm |
| Effective touch size | 681*1210mm error ±2mm |
| Exteral aluminum material | aluminum alloy+4mm toughened glass |
| Touch method | finger touch and other Opaque objects |
| Touch Times | unlimited |
| Touch Activation Force | No minimum touch activation force is required |
| Minimum Touch Object | 5mm*5mm |
| Performance |
|
| Resolution(interpolation) | 4096*4096 |
| Linearaty error | <1.5mm |
| Response time | <15ms |
| Cursor speed | 300point/s |
| Operating system | standard HID device,install without driver ;operation system:32 bit or 64bit XP,Vista,win7,Mac OS X 10.5 and above |
| Electrical Features |
|
| Power insert value | typical value +5VDC,allow range: +4.75V ~ +5.25V |
| Power | <1.5W |
| Connection method | USB |
| Agency Approvals | CE, ROHS, FCC |
| Environmental |
|
| Tempreture | operating tempreture : -20°C ~ 70°C ; storage tempreture : -40°C ~ 85°C |
| Humidity | operating humidity : 0%-90% RH (No condensation)
storage humidity : 0% - 95% RH (No condensation) |
| Altitude | up to 3,000m |
| Ambient Light | Direct sunlight 90°to ±30° to the display surface Touch detection can operational Direct sunlight all angles to display surface Free of false touch reports |
| LED life time | >= 7 years |
FAQ
1. Q: Are you a factory?
A: Yes, we are a factory, we have our own production line.
2. Q: what's your products' quality control?
A: Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. certification.
3. Q: What's your after-sale service?
A: We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4. Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the order quantities are bigger, the discounts are bigger.
5. Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6. Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
