| Prod Model: |
TM104SDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
LED Backlight Display |
| Application: |
Big-Screen Project |
Product Description
Basic Info.

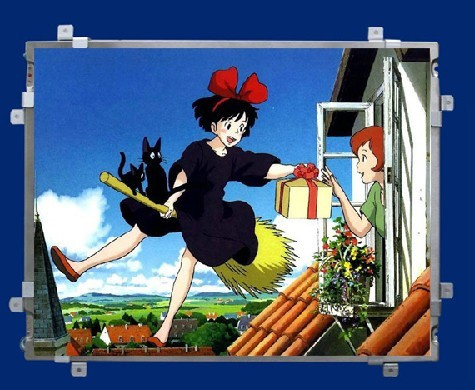

Model No.: TM104SDH01
Display Technology: TFT
Usage: Outdoor Using
Type: LCM
Size: 10.4 Inches
Luminance: 600nit
Backlight: LED
Life Time: 50000 Hr
Power Consumption: 1400 W
Export Markets: Global
Additional Info.
Trademark: BR
Packing: Standard
Standard: 10.4"
Origin: China
Production Capacity: 36000 PCS/Year
Product Description
Super High Luminance
Ultra-low power(reduce 30% compare with similar products)
Long Life Time(Up to 50000Hr)
High Color Gamut
The outdoor sunlight visible high brightness panel for advertising display is a kind of LCD panel with high efficiency, playing the video in the open air and Visibility in sunlight. This product adopts the latest LED backlight source which makes the brightness of the products up to 2500nit in low power working state. Under outdoors high brightness's environment, user can read the displaying content clearly. It also can adjust the brightness and the contrast ratio through the screen menu in order to use under the general brightness environment to use. It is suitable for the publicity of the product image and it can pass a full range of products information and promotion information to the consumers, especially for placed in the supermarket, kitchen window to advertise.
The high brightness backlight module of this product is made by our independent research and development, the driver with automatic temperature control technology, automatic backlight compensation technology, and automatic brightness correction technology.
Features:
High brightness LED-backlight system is adopted, with high luminous efficiency and excellent color saturation
Our product features are: Super brightness, Ultra-low power, ultra-low temperature rising.
It is a highly efficient 10.4 inch LCD screen using for playing the video in the open air, using the latest LED backlight which makes the brightness of the products up to 1000nit. It could be advertising for HighPoint and Top quality brand image and could also meet public consumers' requirements of the full range of products, especially for products placed in stores next to publicity; Compared to other conventional media and promotions, it is a very low cost. The product equips with the high brightness LCD screen, LED backlight, backlight drive board and optical bonding etc.
|
Active screen size |
10.4 inches diagonal |
|
Outline Dimension |
1666.0(W) X 968.0(H) X 60(D)mm(Typ. ) |
|
Pixel Pitch |
0.813mmX0.813mm |
|
Pixel Format |
1920 horiz. by 1080 vert. Pixels. RGB stripe arrangement |
|
Display Colors |
16.7Mcolors |
|
Contrast ratio |
2000: 1 |
|
Luminance, white |
2000 nits(Typ. Center 1 point) |
|
Power Consumption |
< 1400 |
Watts(Typ. ) |
|
Visible angle |
178/178(° ) |
|
Aspect Ratio |
16: 9 |
|
Response time(S) |
8(ms) |
|
Display operating mode |
Transmissive mode, normally white |
|
Surface treatments |
Hard coating (3H), Anti-glare treatment of the front polarizer |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
