| Prod Model: |
GD102M03-GTT104SDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Technology: |
TFT |
| Customized: |
Customized |
| LCD Drive Mode: |
Others |
| Touch Screen Type: |
Can Choose |
| DOT-Matrix Graphic LCD Module Type: |
Others |
| Digital LCD Module Type: |
Others |
| Viewing Angle: |
211.20 × 158.40 |
| Response Time: |
Others |
Product Description
Application:
Office electronic equipment
Apparatus & measurement appliance
Machinery
Audiovisual (Display for car\Protable DVD\Long-distance terminal\Lcd TV)
Home appliance (Video door phone\Video telephone)
Don't use it for high-sophisticated product which need high requirement in term of reliability and stability.
. Main Parameter:

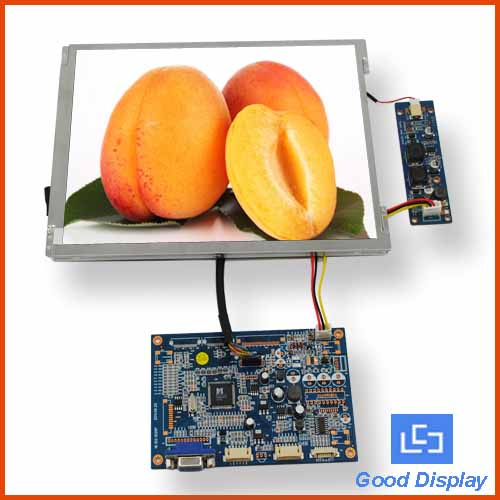

Product Name: 10.4" TFT LCD Module
Module Model: GD102M03-GTT104SDH01
TFT Panel: 10.4" TFT LCD display: GTT104SDH01
Backlight: LED
Resolution: 800× 3(RGB)× 600
View angle(U/D/L/R): (45/65/65/65)
Power Supply Voltage: Min: DC9V; S: DC12V; Max: DC18V
Active Area((mm): 211.20 × 158.40
Outside dimension of display(mm): 236.0(W)× 176.9(H)× 5.6(D)
Structural dimension of PCB(mm): 128.8(W)× 85.4(H)× 15.7(D)
Operation temperature: - 20~70 degree centigrade
Relative humidity: 5~95% RH
Storage temperature: - 20~70 degree centigrade
Good Display is a prefessional manufacturer of high quality and low cost LCD products in China. Our engineers have more than 10years of experience in designing and manufacturing standard and customized LCD displays. We have the state-of-the-art clean room facilities and production lines for LCD glass and modules with the most advanced techniques introduced from the United States and Japan. Our products include standard and customized LCD glasses and modules, including segment (alphanumeric) displays, DOT matrix (character) displays and graphic displays (monochrome and color). We provide a large range of LCD types, including TN, HTN, STN, FSTN, CSTN, TFT, etc., featuring various module mount methods such as SMT, COB, COG, TAB and more.
We have ISO9001 certification issued by DNV, and our products have been the first choice by manufacturers, engineers, developers, distributors and other business partners. The annual production capacity is 30, 000 square meters of LCD glass and 10 million pieces of LCD modules. From our main manufactory in China, our products have been supplied to over 20 countries in Europe, Asia, and North America.
