| Prod Model: |
T104S-4RB006G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OS Support: |
Windowsxp/7/8/Mac/Linux |
| Application: |
Indoor~@~Computer~@~Outdoor |
| Feature: |
Touch Display |
Product Description

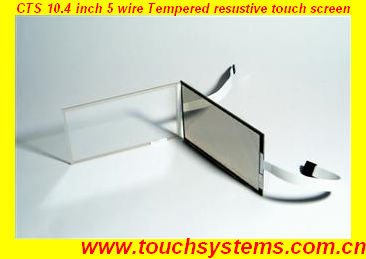

Five-wire？resistive？touch screen？technology, with？high？performance？for？POS, industrial, medical,transportation and other？fields of application.？Use？of？fingers, nails？or？other objects？such as credit card,？oreven？wear？gloves, but also has？a？higher？reaction speed？and？high precision
Stable,？no offset
input？flexible
dirt capacity
high-frequency applications,？high accuracy
long product life
Meets？the？NEMA 4/4x/12？and IP？65？standard
RS232&USB controller optional,3 years warranty!
More detail pls contact with our sales!
|
Item |
Five wire resitive Touch screen |
|
|
|
|
Model |
T104S-5RB006G |
|
Size |
10.4 inch |
|
Type |
Film to glass |
|
Resolution |
4096× 4096 |
|
Transprency |
≥80% |
|
Linearity |
X≤ 1.5% Y≤ 1.5% |
|
Chattering |
(typical) ≤ 8ms |
|
Tail |
FFC material |
|
Resistance |
X: 20Ω~500Ω |
|
|
Y: 20Ω~500Ω |
|
Operating force |
50g-120g |
|
Operating temperature |
-35~+80 deg |
|
Storage temperatire |
-40~+85 deg |
|
Touch life time |
> 3500W times |
|
|
|
|
Frame area(mm) |
228.7×173.4 |
|
View area(mm) |
215.58×162.75 |
|
Active area(mm) |
211.58×158.75 |
Shenzhen CTS Innovation Technology Co., Ltd is one of China's touch products manufacturer, previous mainly for domestic and international famous brands offer touch components, service, the company has become a set of product development, production, sales and service as one of the diversification, comprehensive enterprise, provide for the customer including touch panel and touch chip, touch POS machine, touch, touch screen display, industrial control computer interactive information query terminal (KIOSK) products.
