| Prod Model: |
AT102TN03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Rongen |
| Product Name: |
At102tn03 |
| Resolotion: |
800X480 |
| Luminance: |
250CD/M2 |
| Contrast Ratio: |
300:1 |
| Size: |
10.2inch |
| Active Area: |
225.3X135.7mm |
| Response Time(Ms): |
15/20 (Typ. )(Tr/Td)(Ms) |
| Viewing Angle: |
65/65/45/65 (Typ. )(Cr≥ 10) |
| Operation Temperature: |
-30 ~ 85 |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Screen Size: |
10.2inch |
| Optimum Resolution: |
800X480 |
| Interface Type: |
Lvds |
Product Description

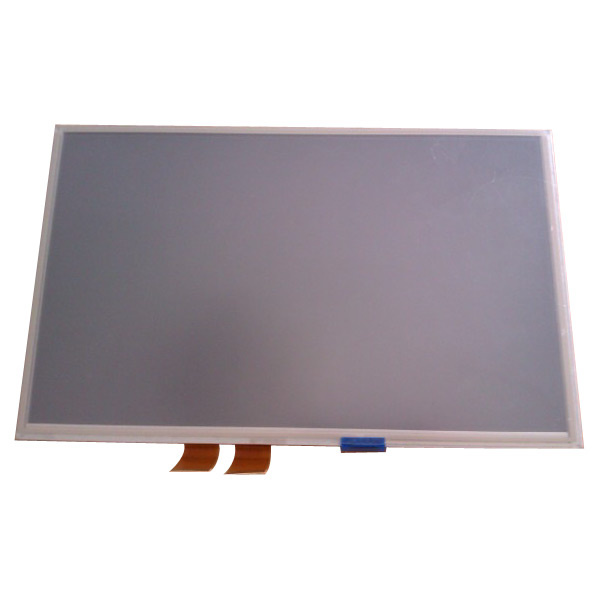

10.2inch TFT LCD Screen with Touch ScreenBrand: RONGEN
HS: 8528511000
AT102TN03 10.2inch TFT LCD screens with TP 800x480 250CD/m2 Innolux
Specification:
-Screen Size: 10.2inch
-Resolution: 800(RGB)X480
-Luminance: 250CD/m2
Aspect Ratio: 16: 9
Contrast Ratio: 300: 1(Typ. )
Active Area: 225.3x135.7mm
Response time(ms): 15/20 (Typ. )(Tr/Td)(ms)
Viewing Angle: 65/65/45/65 (Typ. )(CR≥ 10)
Operation Temperature(° C): -30 ~ 85 ° C
Storage Temperature(° C): -30 ~ 85 ° C
P. S.: 30PIN
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
