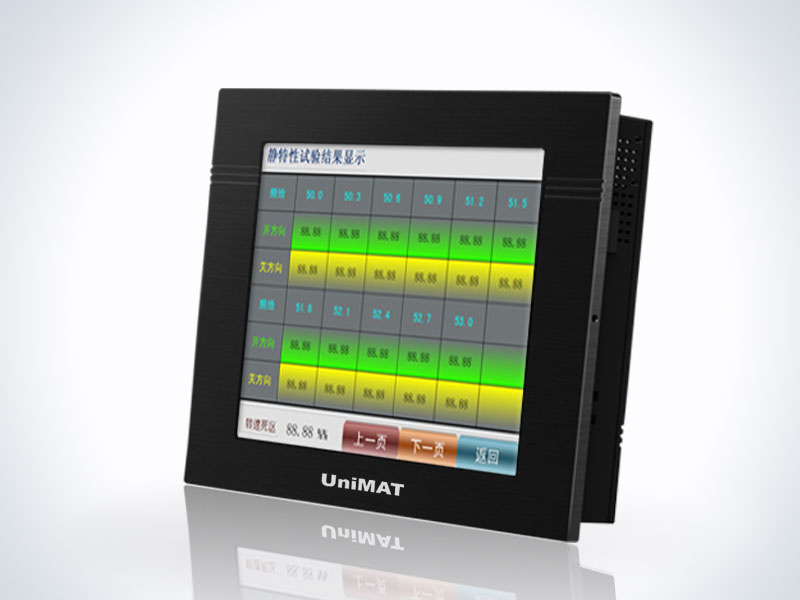

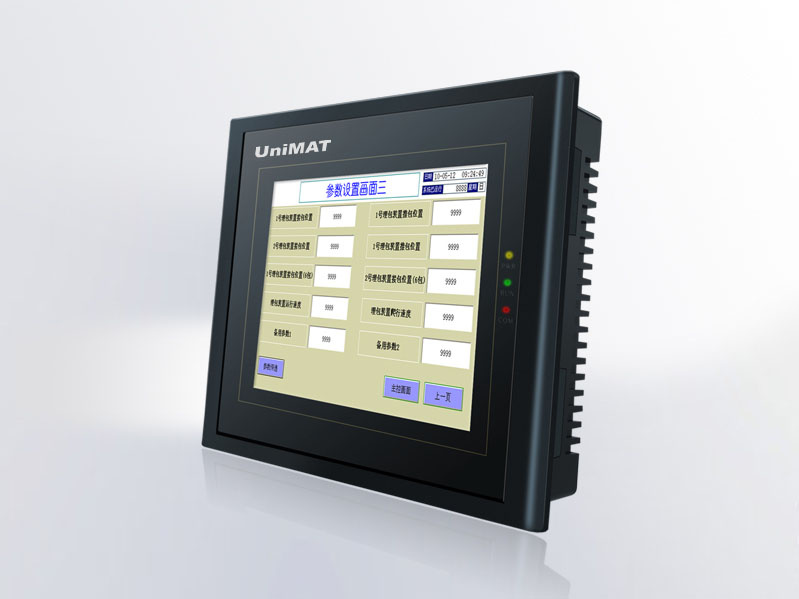

10.2 Inch Touch Screen HMI with Ethernet Port

Name: 10.2 Inch Touch Screen HMI with Ethernet Port
Brand: ec-portal.com
SKU: 698501945
Availability: InStock
Rating: 4.3 (86 reviews)

Price:	US $ 250-300/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	UNSK102AS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Touch Screen:	High Precision
Programmable:	Big Size
Task:	Program
Structure:	Combination
Mathematical Model:	Linear
Signal:	Continuous
Function:	Monitoring
Certification:	CE
Condition:	New
Customized:	Customized
Material:	ABS

Product Description

Characteristic:
1. 8" TFT Color LCD
2. 16: 9 800*480 resolution
3. Color: 262144
4. USB Download/USB/RJ45 ETHERNET PORT/SD Card,
COM1: RS232/422/485, COM2: RS232/422/485
5. CPU Speed: RISC 400MHz
128M Flash + 64M DDR2(SDRAM).

Specifications	Items	UNSK-102AS
Display	Dimension	10.2" ( Length x Width =16:9 )
	Resolution	800 x 480
	Touch Panel	4- wire high precision touch panel
	Display Color	266,144
	Backlight Unit	LED
	Contrast	450:1
	Brightness	500cd/sqm
SD Card		Yes
Memory		128M/FLASH + 64M DDR
CPU		32-bit 400MHz RISC
Protection Grade		IP 65 Front Panel
Housing Material		Engineering Plastics: ABS+PC
Power Supply	Power Supply	DC24V(+/-15%)
Power Supply	Power Consumption	8w
Interface	Serial Interface	COM1: RS232/422/485 and COM2: RS232/422/485
	USB Download Port	Yes
	USB	Yes
	RJ 45	Yes
Environment	Operation Environment Temperature	~10 to 65C
	Operation Environment Humidity	10 ~ 90% RH
	Anti-Vibration	10-25Hz( XYZ direction 2G/30 minute)
Mechanical	Dimension (widthheightdepth mm)	266 x 208 x 40mm
	Cut-out (width*height mm)	261 x 203mm
	Weight	2kg
