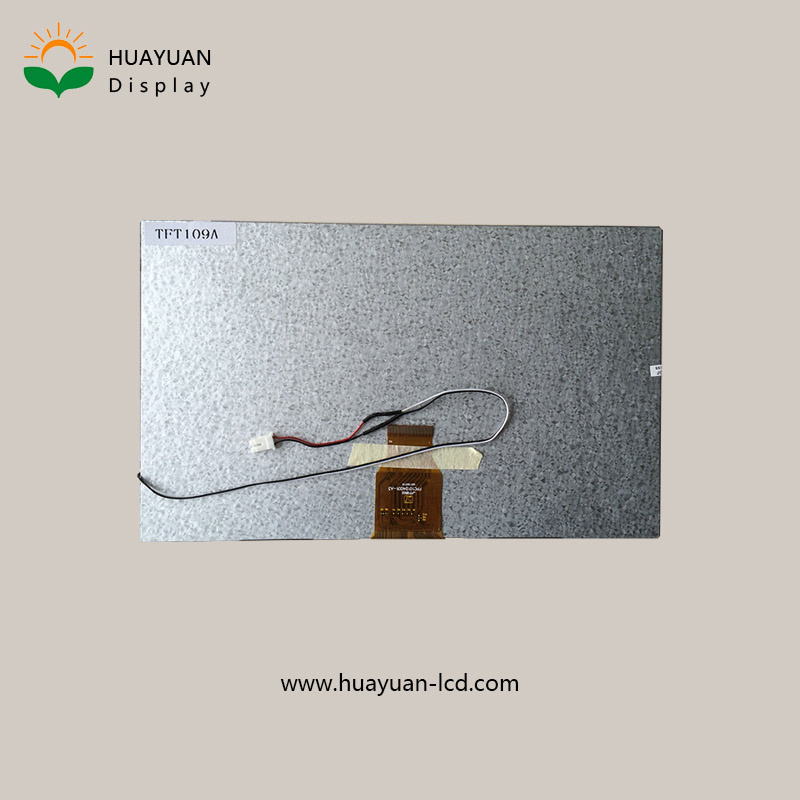

10.1inch LCD 4 Wire Resistive Touch Screen
| Price: |
US $ 18.98-22.58/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
TFT171A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT |
| Viewing Direction: |
12 O'clock |
| Operating Temperature: |
-20~+70 |
| Active Area(W×h): |
222.27X125.28 mm |
| Controller: |
Hx8282A14+Hx8696 |
| Backlight: |
3X13-LEDs (White) |
| Interface: |
Lvds |
| Screen Size: |
≤17" |
| Application: |
Outdoor |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Interface Type: |
Lvds |
| Optimum Resolution: |
1024X600 |
Product Description
10.1inch LCD 4 Wire Resistive Touch Screen 1.General Specification
LCD Type:TFT
Display color:16.7M
Viewing Direction:12 O'Clock
Gray scale inversion direction:6 O'Clock
Operating temperature: -20~+70 ºC
Storage temperature: -30~+80 ºC
Module size:Refer to outline drawing mm
Active Area(W×H):222.27X125.28 mm
Number of Dots:1024×600 dots
Controller:HX8282A14+HX8696
Power Supply Voltage:3.3 V
Backlight:3X13-LEDs (white)
Interface:LVDS
TFT171A is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,
FPC, a back light unit. The 10.1 display area contains 1024 x 600 pixels and can
display up to 16.7M colors. This product accords with RoHS environmental criterion.
2 .FAQ| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung,, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2017 electronics exhibition in Korea. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
| Contact Us: Send inquiry to us to get newest price and information. |
| Tel: +86-731-28668968 |
| Fax: +86-731-28660280 |
3. Related Products| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd ,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
