| Prod Model: |
YS910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CCC |
| Material: |
Composite Material |
| Usage: |
Reducing Temperature and Incerasing Humidity |
| Shape: |
Cuboid |
| Application: |
Greenhouse,Farm,Factory |
Product Description
The best choice of ventilation and cooling the temperature in the workshop building and greenhouse.

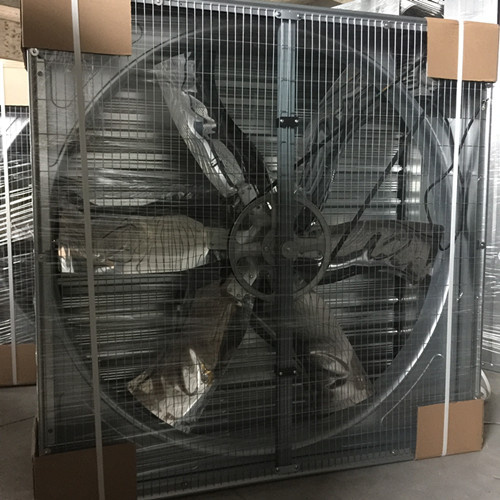

Push-pull type exhaust fan
Special push-pull shutter mechanism can open and close shutter automatically.
Stainless steel blade uses a stamping molding process,possessing beautiful,durable,high-precision balance testing revision characteristics , avoiding being deformed and cracked,working smoothly,reducing the noise and effectively improving the service life.
Unique concave handling design of exhaust fan not only helps avoid inconvenience occurred in the transport,but also keep favorable installation and beautiful exterior.
V-belt pulley is made of high-strength and light-weight aluminum magnesium alloy,formed by heat press processing.
A-belt or B-belt,can be customized according to the sales condition of agents to meet different customers' needs.
Equipped with efficient and energy-saving motor with CCC certification.Protection level:IP55.Insulation level:F.
Guide rod-embedded steel is installed on the impeller,enhancing the reliability,and effectively avoid shift during the process of nylon production.
Wind collector:Made in 1.0mm with no galvanized sheet. Can produce type #910 and 270, also can be customized according to uses' needs.
Protecting wire net:Made by hard-drawn wires of different diameters(also can use required materials according to users). Surface processing uses electrostatic powder painting or galvanization. The surface color can be made according to customers' request.
Iron base for the blade: One-step forming process, strong and reliable, ensure the service life.
Push-pull aluminum wheel: Made of high strength aluminum and magnesium alloy by press casting mold. light material and high intensity.
Fan blade:Professional designed blade angle. Air volume keeps consistent in the fan using process through dynamic balance test.
Push-pull institution:high strength,high toughness nylon.
| Model specifications | YS-1000 | YS-1380 |
| Diameter of blade(mm) | 910 | 1270 |
| Frequency(Hz) | 50 | 50 |
| Motor rotational speed(rpm) | ≥1400 | ≥1400 |
| Air flow(m³/h) | 23500 | 48000 |
| Import power(W) | 750 | 1100 |
| Noise(decibel) | ≤64 | ≤64 |
| Rated voltage(V) | 380 | 380 |
| Height(mm) | 1000 | 1380 |
| Width(mm) | 1000 | 1380 |
| Thickness(mm) | 450 | 450 |
Jiangyin Shuncheng Air Treatment Equipment Co., Ltd Locates in The Beautiful and Scenic Yangtze River and Situates in Jiangyin, Which Is One of China's New Materials Development Economic Zone Along The Yangtze River, The So-Called No. 1 Village of China Is Just in Our Proximity.
Our Predecessor Is Jiangyin Yaoshun Plastics Machinery Co., Ltd. Which Specialized in The Production of "Yaoshun" Brand Plastics Knitting Machines. with More Than Twenty Years of Striving Efforts, The Enterprise Follows The Principle That "Ever Changing Is The Only Unchanged Law of Market. " and Has Been Persistently Been Developing The New Products to Occupy The Marketplace. Since 2000, While Introducing The International Level. The Main Function of Such Cooling Pad Is to Reduce The Temperature and Increase The Humidity of Greenhouse, and The Cooling Pad Can Be Widely Used in The Greenhouse, Chicken Farm and Weaving Factory. It Is Testified Through The Results of Practice of The Global Users That Our Products Are Environment-Friendly, High Efficiency and Energy Conversation.
We Sincerely Welcome Your and The Mass Client's Inquries and Look Forward to Our Cooperation!
