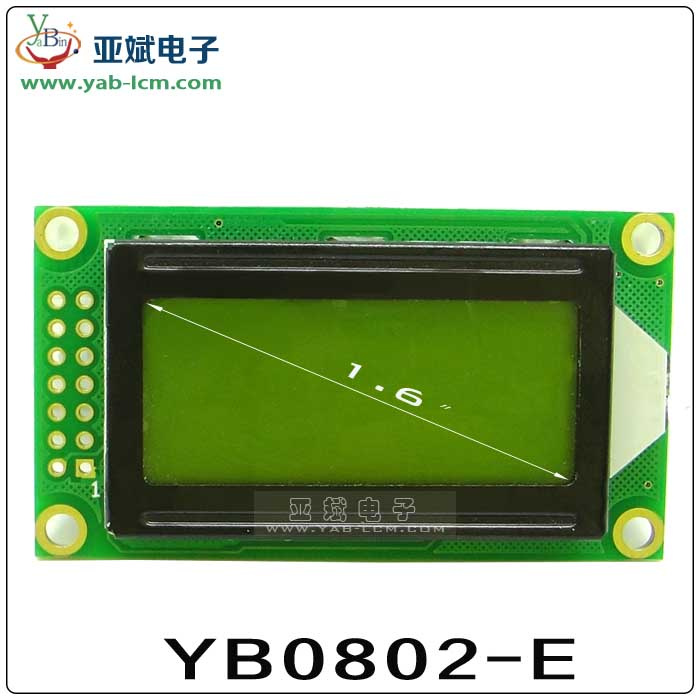

0802e 8X2 Character LCD Module Display
| Price: |
US $ 8/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
| Prod Model: |
0802E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Character |
| Usage: |
Small-sized LCM |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Display Technology: |
COB |
| Viewing Angle: |
TN＋FILM |
| Customized: |
Customized |
Product Description
1. FUNCTIONS & FEATURES
Manufacturer
YaBin
Series Number
YB0802-B
Display Format
8x2 Dots
Outline Dimension
58(W)x32(H)x13.2(T)mm
Visual Area
38×16 mm
Active Area
27.45(W)x11.5(H)mm
Character Size
2.45X4.9545mm
Diagonal Size
1.6"
Dot (Pixel) Size
0.45X0.488mm
IC Package
COB
IC or Equivalent
SPLC780C/HS44780/KS0066 or Equivalent
Interface
6800 8-bit/4-bit Parallel
Interface
parallel
Display Type
STN/FSTN
Sunlight Readable
No
Touch Panel Optional
No
Contrast Ratio(Typ)
No
Viewing Direction
6:00
LED Backlight Color
Blue /Yellow Green /Gray
Appearance
White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)
3.3V/5V
Backlight Current (Typ)
15mA
Operating Temp
-20ºC~70ºC
Storage Temperature
-30ºC~80ºC
If accept customized
Yes
RoHS Compliance
Yes
2. PIN DESCRIPTION
ITEM
SYMBOL
LEVEL
FUNCTION
1
VSS
0V
Power Ground
2
VDD
5.0V
Power Supply For Logic
3
V0
-
Contrast Adjust
4
RS
H/L
H:Data L:Command
5
R/W
H/L
H:Read L:Write
6
E
H,H->L
Enable Signal
7
~
14
DB0
~
DB7
H/L
Data Bus
3. Advantages
Competitive Advantages :
1.High Quality. RoHS ,SGS compliant. Every products are strictly checked by our quanlity control department before shipment.
2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3.Best Service. We provide best pre-sales and after-sales service to you
4.Custom Design,can specially meet your needs
5.Fast Delivery ,about 20 days for lead time
6.Samples available on request
7.Small MOQ orders can be negotiated
