Shenzhen Vcomsky Technology Co., Ltd. >> Vehicle 4G Mobile DVR Recorder 8CH Car DVR GPS Camera System with 3G WiFi

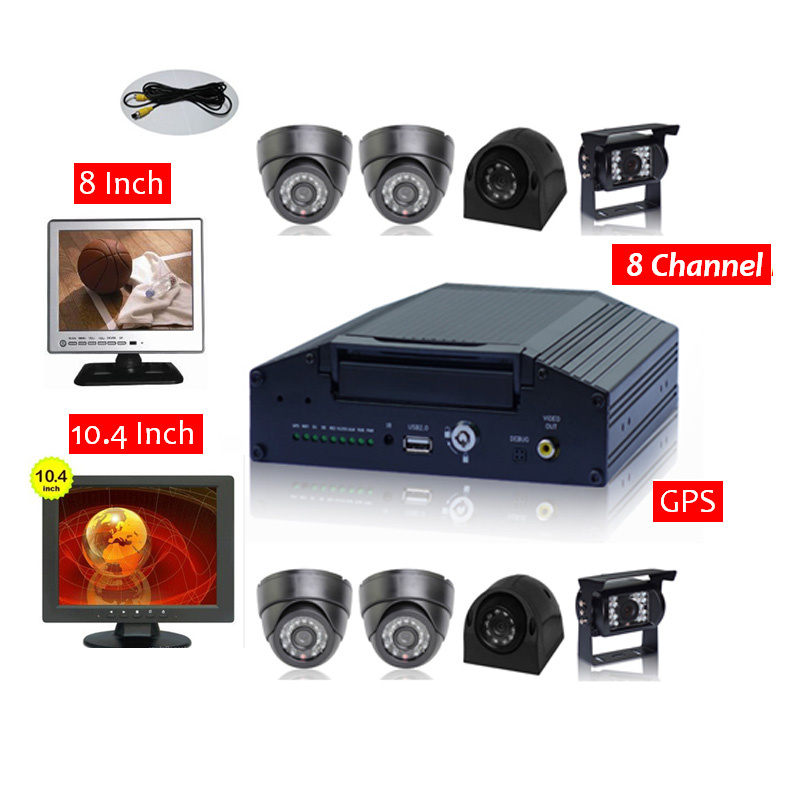

Vehicle 4G Mobile DVR Recorder 8CH Car DVR GPS Camera System with 3G WiFi

Vehicle 4G Mobile DVR Recorder 8CH Car DVR GPS Camera System with 3G WiFi
Price: US $ 199-399/Piece
Trade Terms: FOB,FCA,EXW
Min Order: 2/Piece
Pay Type: T/T,Western Union
Prod Model: VC-MDRH9008 Bus DVR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wide Voltage: 8-36 V
Compression: H. 264
Live View Quality: D1
Decoding Capacity: 4D1
Input: 8 Channel Audio Input
Storage Medium: Support 1 SD Card and 1 SATA Hard Disk
Compression Format: H.264
Brand: Vcomsky
Certification: FCC, CE, RoHS
Interface: Airplug
Warranty Time: 13 Months

Product Description

VC-MDR H9008


Functions:


· Using H. 264 Compression algorithm, high compression ratio, image more clearly;

With 8-36 V wide voltage design, for all kinds of automobiles;
Support 8 channels input, can monitor more positions;
Using special file management mechanism, it can encrypt the data, and effectively protect data security;
Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life
With dual streaming technology, it can ensure the effect of local video recording, and also ensure the wireless transmission effect;
Support recording to SD card and hard disk at the same time;
Support to overlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal;
Support 3G transmission for optional;
Support GPS for optional;
Support WIFI for optional.
ProjectDevice parameterPerformance
SystemProcessorHi3515
OSEmbedded Linux OS
Operating languageSimplified/En/Traditional
Operator
interface
GUI, support mouse
Safety managementUser password, Admin password in two layer management system
VideoVideo standardPAL(625 lines,50 scenes/sec);NTSC(525lines,60 scenes/sec)
CompressionH.264(Main Profile)
Live view qualityD1
Playback qualityCIF/D1
Encoding capacity2D1+6CIF realtime; 8CIF realtime
Decoding capacity4D1 realtime
Input8 channel composite video input
Output2 channel composite video output
DisplaySingle picture, 4 pictures, 8 pictures, 9 pictures; alarm screen automatic switch
AudioCompressionADPCM
Input8 channel audio input
Output1 channel audio output
Recording modeVideo and audio synchronously recording
Speech talkbackSupported
Recording & playbackRecording typeManual\Schedule\Alarm\Circle recording
Video bitrate64Kbps~1.5Mbps
Audio bitrate8KB/s
Storage mediumSupport 1 SD card and 1 SATA hard disk
Recording file search typeAccording to channel , time, video types
PlaybackPlayback by files; 4 channels playback
Startup/
Shutdown
Startup modeACC, Schedule
Shutdown modeACC delayed shutdown.\Schedule shutdown\hard disk lock off shutdown
Software updatingUpdate modeManual\automatic updating when power on
Update methodUSB interface; SD card; wireless
InterfaceVideo input8 channels aviation head interface
Video output1 channel aviation head interface;1 channel RCA interface
Audio input8 channels aviation head interface
Audio output1 channel aviation head interface
SD card1 SDHC(Maximum support 32G)
USB interface5 USB 2.0
Hard disk interface1 SATA interface(use USB2.0 interface to convert)
Mouse1(USB2.0)
Ignition Signal1
Alarm input8
RS485 port1
RS232 port2(one for GPS)
Network port1 RJ45 10/100M Adaptive
IR port1
Wireless interface3G(through 3G daughter board expansion)
3Gfunction (optional)GPSRS232 interface, according to NMEA-0183 protocol
3GUSB interface, support  EVDO & WCDMA
WIFI802.11 B/G/N
Auxiliary softwarePC playback softwarePlayback the recording files on PC, and analyze all informations that overlayed in the file, such as IO signal, GPS info.
CMSThrough wireless network achieve the functions such as remote video preview\GPS uploading\alarm uploading, central command issuing ,parameter setup.
OthersPower inputDC: 8V~36V
Power output+12V@2A; +5V@2A
Work temperature-20 --- 60
Power consumptionStandby: 3.6W
fully loaded: 27W
Size(187.81)x(163.88)mm
