Prod Model: |
QD43YG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Qd43yg |
Refrigerant: |
R600A |
Voltage: |
220-240V |
Frequency: |
50/60Hz |
Motor Type: |
Rsir |
Application Type: |
Lbp |
Brand: |
Sikelan |
Displacement: |
4.3cm3 |
Cop: |
1.17 |
Input Power: |
54W |
Application: |
Wine Cooler Parts |
Parts: |
Refrigeration Compressor |
Product Description
1-MAIN FEATURE:
High efficiency
Low vibration
Good reliability
Experienced staff ensure produce of the compressors with good quality.
2-SIMPLE SPECIFICATION:
1)QD43YG, V series, use R600a refrigerant;
2)Voltage application from 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: RSIR;
5)Cooling type: ST;
6)Starting device is PTC Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/11HP;
9)COP is 1.14 with the cooling capacity 58W.

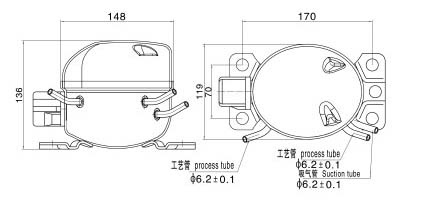

3-COMPRESSOR DRAWING:
4-CERTIFICATE: CCC,CE,UL,CB,ROSH
5-STORAGE CONDITION:
1)Compressor should be stored in a dry and drafty place
2)Compressor should not be tilted or inverted in storage, transportation and
installation; Collision should be avoided.
3)Rubber plugs should not be pulled out from discharge tube before installation so as
to avoid impurity and humidity. During the installation, the rubber plugs of discharge
tube should be pulled out at first, then the rubber plugs of process tube, and the
rubber plugs of process suction tube at last. The installation should be completed
within 10 min after that.
4)The accessories (eg. Starter, thermal protection etc. ) are nor installed into the
compressor while delivery, but in the accessory case. Be sure to select the
corresponding starter and thermal protection models rightly.
V. V Series | | | | | | | | | | | | | | | | |
Model | Efficiency | Dispt (cm3) | Capacity (W)-ASHRAE | Cooling Type | Motor Type | HP | Starting Device |
-35 | -30 | -25 | -23.3 | -20 | -15 | -10 | -5 | 0 |
Capacity W | Input Power W | Current A | COP |
QD43YG | OE | 4.3 | 26 | 38 | 58 | 70 | 60 | 0.49 | 1.17 | 78 | 100 | 125 | 150 | 190 | ST | RSIR | 1/11 | PTC |
QD43YG | HE | 4.3 | 26 | 38 | 58 | 70 | 54 | 0.26 | 1.30 | 78 | 100 | 125 | 150 | 190 | ST | RSCR | 1/11 | PTC |
