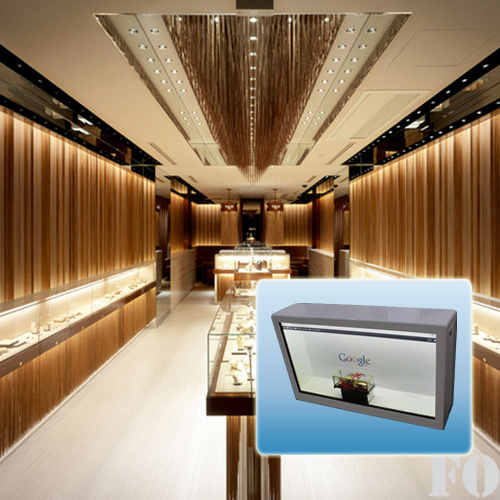

Simple Style Android Transparent Touch LCD Display for Advertising

Simple Style Android Transparent Touch LCD Display for Advertising
Price: US $ 499-1000/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal
Network Support: Ethernet
Communication Interface: USB
Response Speed: < 20 Ms
Display Ration: 16:9
CPU: All Winner A20 , Dual Core 1.2GHz
Memory: 1g DDR3
Built-in Memory: Nand Flash 4 G (Extensible)
Decoding Resolution: Support up Ot1080 P
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 6mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 27,777 dots / m²
Scanning Mode: 1/8 Scan
Display Type: LED Video Display
Application: Advertising
IP Rating: IP43
System Operating Platform: Windows 7

Product Description

Main Hardware Indicators
Transparent DisplaysPanel size10.421.5324247556584
Display size(mm)211*158476*268698*392927*5221039*5841209*6801428*8031860*1046
Rresolutio Ratio1024*7681920*10801920*10801920*10801920*10801920*10801920*10803840*2160
Light Transmittance

90%
Viewing Angle70/70/75/7589/89/89/8989/89/89/8989/89/89/8989/89/89/8989/89/89/8988/88/88/8889/89/89/89
U/D/L/R
Display Ration16:09
Surface Treatment

Hard coating (3 H) and antidinic plariser

The whole machine sizeIt can be customized according to customer's requirements

CPUAll winner A20 , dual core 1.2GHz

Memory1G DDR3
Built-in memoryNAND FLASH 4 g (extensible)

Decoding resolutionSupport up ot1080 p
Operating systemSupport Android 4.2 or above

Play modeSupport loop, timing, inter-cut etc. many kinds of playing mode

Network supportEthernet, support WiFi, wireless peripherals expansion

Video playingSupports wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc

Image formatSupports BMP, JPEG, PNG, GIF

 I/O interfaceUSB 2.0 interface: two USB HOST
Ethernet: a RJ45 interface, adaptive 10 m / 100 m Ethernet

HDMI output

1pc, support 1080P output (built-in)

Audio and video output

Built-in double 4 r / 6 w power amplifier

RTC real-time clock

support
Timing switch

support
System upgrade

Support USB upgrade, network upgrade

Touch screenInductive way: built-in infrared induction multi-touch technology
Touch mode: opaque objects  such as finger and pen .
Interpolation resolution: 32768 * 32768
Communication interface: USB
Clicks in theory: unlimited times
Response speed: < 20 ms

Product Features:

(1) High light transmittance LCD:
     high light transmittance  transparent screen,  see  the object inside through broadcast images,      the dynamic advertising information combined with static objects such as terminal product and      shopwindow,to strengthen the brand experience and shopping experience.

(2) Infinite perspective:
     transparent panel adopts advanced technology,unique liquid crystal molecules planar
     switching method,  the full range of visual angle can reach 80 degrees; Display technology              application is colorless, color gamut rising sharply , picture is more exquisite and lively,
     no matter any angle you can enjoy a rich color image as vivid as life.

(3) Perfect advertising playing functions:
    support MPEG1, MPEG2, MPEG4, MP3, AVI, JPEG etc. multimedia formats , automatic                 circulation broadcast advertising program; Support 720P HD broadcast and scrolling
    marquee, timeing switch , etc.

(4) Humanization and intelligent switch Settings:
      timing switch  according to  the  customers' different requirments, which is match with the             humanized management in senior hotels, hospitals and communities.


Main Software Indicators
Profile
Web-based advanced B/S architecture, support big users, concurrency and hierarchical management, connect thousands, tens of thousands of terminal at the same time.

Design and production

WYSIWYG visualization program editing, free segmentation and   combination of screen region. Prepared a variety of wonderful Template, make it easy for users to make high-quality programmes and programs can be directly imported PPT, Word, Excel and other format file, save production time and energy. Systems support native web pages without distortion, advanced system architecture, the generated program file is small, save the transmission bandwidth.
Release management

System supports multi-level auditing mechanism,only the secondary or tertiary administrators submit  the content has been made,edited or modified to a higher level administrators to audit,the program can be released. Programs are  posted to the specified playing ends  or playing ends group at the specified time. For example,10 PM - 6AM released to the Shanghai group, make use of idle resources to reduce the network usage. Program  broadcastcan mode and schedule can be set , validity of program as well , support  breakpoint continuingly and background download mode, more reliable transmission .
Management control

Terminal playing: you can set the boot automatically play the default playing list. It  plays according to the default playing list without receiving a new playing schdule. Real time slots. System support an emergency intercut and rolling subtitles, etc.
Terminal management: The system can remote time of the play ends ,automatic time switch ,remote volumne control and manage the HD space of the playing ends .The playing  ends software has a quick control menu incluing volmne control, sound off, play stop,reset etc.
Display effectSupports full HD Realistic effect display(1920x1080p),  support 1024 x768  as well.
1280 x768 resolution,  a variety of dynamic gorgeous effect, attract visitors attention, support vertical screen

User permissionsAccount management:  managing user accounts, permissions and password etc, record related tasks and activities.
Grouping management: classify the network users by grade ,areas ,function and authorization management.
Authority management: the system provide many levels of authority management, satisfy the need of classification management  process control of large enterprise . For example,  system administrators, publishing administrators, program audit administrators, etc.
Programs approval

Approval process can be set after the programming , only the audit programs can be released, broadcast system can be set multi-level auditing mechanism. System administrators can set the programs which is edited or modified by the secondary or tertiary administrators to district-level managers or designated account audit, can not be released directly.  In addition to auditing the program, reviewers also can adjust the broadcast time, broadcast mode  and broadcast network, etc.
Monitoring management

System of the whole network and the Make real-time monitoring with all the internet and hardware, software in each boardcast sites,including network connection status, IP information, play ends state, the current program, the current spot news, information, play ends updating information, etc. Alarm when abnormal situation,administrators can analysis the screen remote and real-time captured from play ends ,  ensure accurate and safe.
Analysis of the statistics

Provide professional statistics report for the large enterprise institutions, such as broadcast time report,  broadcast frequency report ,daily monitor reports,  failure rate report, etc. System records in various important events,including broadcast schedules,brooacast records,  errors in broadcast and exceptions logs, etc.

Trade Terms:

1. Payment: 30% before production ,full payment before shipping by TT or Paypal.
2. Delivery Time:2-5 days for sample, mass production depends on the QTY.
3. MOQ: 500PC.
4. Customers can freely choose the shipping way, TNT, DHL, FedEx, by air or by sea etc.
    We have professional freight forwarders, on the transportation we will not earn customers
    one penny of profit. Of course customers also could use your own freight forwarders, we
    will to fully cooperate with you.

5. Shipping port: Shenzhen Port


Our service:

1.Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service will surely be offered by the well-trained and experienced staffs
3. Protection of your sales area, ideas of design and all your private information.
Creative Galaxy Greative (Shenzhen) Co., Ltd, a wholly foreign-owned enterprise was founded in 2002, with the registered capital of 5.08 million. Our company is an integrated high-tech enterprise which engaged in intelligent display and intelligent lighting. After years of development, we have been successfully developed and produced various intelligent display products and intelligent lights. Intelligent display products include single and online version LED screen displaya, multi-screen display, transparent display cabinets, touch query machine, indoor and outdoor LED message display; Intelligent lights include LED tube light, LED spot light, LED ceiling light, LED bulb, track light and other accessories such as power supply, support, sensors.
