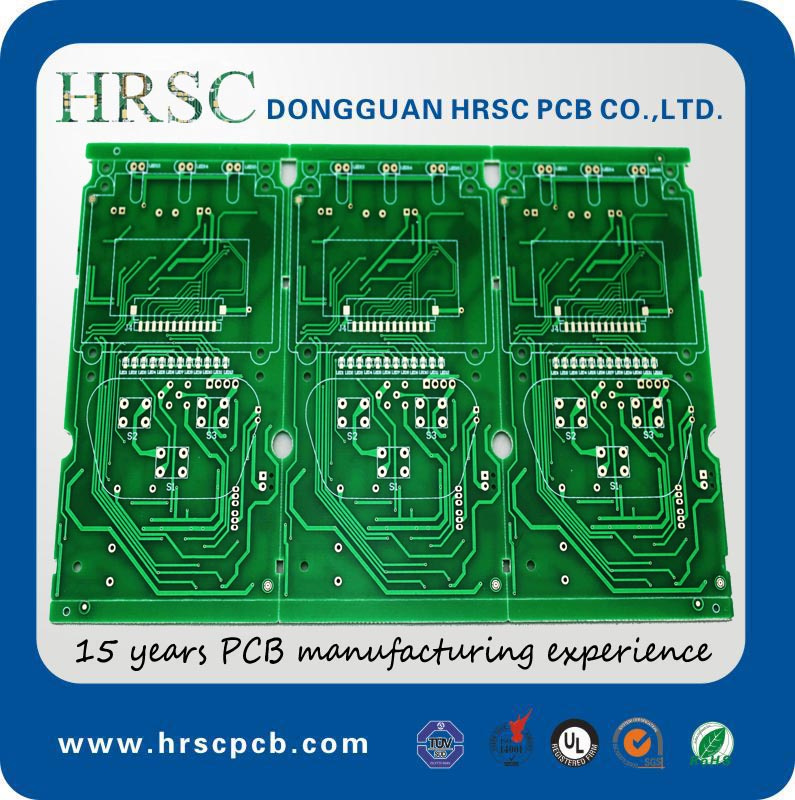

PCB MP3 Player PCB Board

PCB MP3 Player PCB Board
Price: US $ 0.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: pcb-0027
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laminate Materials: Fr-4,Fr-1,,Fr-2,Cem-1,Cem-3
Min. Hole Size: 0.0008" (0.02mm)
Max Size: 600mm*700mm(24000mil*27500mil)
Layer No.: 1-16
Silkscreen Color: White,Black,Yellow,Red,Blue,Green
CNC Tolerance: ± 0.004"(0.1mm)
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0

Product Description

                                                             Welcome To HRSCPCB
We can ODM&OEM PCB&PCBA for you.also we can only design it for you to update your product.


We are the Printed Circuit Boards(PCB) manufacturer with 15 years experience, specialized in single-sided, 2-layerd, multilayer and high density interconnector (HDI) PCB.Used for auto industry, high power led, electric toy, machinery, industrial lighting and so on.
We take strict Japaness-pattern managment ,one-stop service.so pls trust us for your order.thank you.


Our Certification:UL, ISO14001, ISO9001, SGS, TS16949

Our process capability
Pcb board DescriptionCapability
Surface FinishesElectrolytic nickel-gold,
HASL(Lead Free, ENIG (Electroless Nickel/Immersion Gold, Carbon Ink, Golden Fingers, OSP (Entek, Immersion Tin, Immersion Silver
Max.Size1200mm×600mm
Min.Size5mm×5 mm
Bow & Twist ToleranceSingle Side≤1.0%,Double Side≤0.7%, Muti-Layer≤0.5%
Min.Board Thickness & Tolerance0.2mm±0.08mm
Min.Trace/spacingTin board:0.2mm±20%(8mil±0%)
Gold board:0.075mm±20%(3mil±0%)
Copper to Board Edge Spacing0.5mm(20mil)
Hole to Trace Spacing0.3mm(12mil)
Min.Hole Diameter0.2mm±.076mm(8mil±3mil)
Min.Hole Clearance0.4mm±.076mm(16mil±3mil)
Copper Thickness on Hole Wall20-25um(0.79mil-1.0mil)
Hole Location Tolerance±0.076mm(l±3mil)
Min Diameter of Punching HoleFR-4 board thickness≤1.0mm(40mil):1.0mm(40mil)
FR-4 board thickness 1.2-3.0mm(48-120mil):1.5mm(60mil)
Min.Punching SlotFR-4 CEM-3 board thickness≤1.0mm(40mil):0.8 mm×0.8 mm(32mil×32mil)
FR-4 board thickness1.2-3.0mm(48-120mil):1.0 mm×1.0 mm(40mil×40mil)
Trace width variation±0.076mm(±3mil)
Outline ToleranceRouting:±0.1mm (±4mil)  ,Punching:±0.05mm (±2mil)
V-CUT Registration Tolerance±0.2mm (±8mil)
TypeSingle-sided, double-sided, multi-layer
Major MaterialFR-4, CEM-1,CEM-3, high frequency laminates, Aluminum, NiFe-based, copper base
Thickness0.2-3.5mm
Base Copper Thickness11um  35um  70um  105um
Max.Aspect ratio(board thickness:Hole size)8:1
V-Cut Angle Tolerance±5°
V-Cut Board Thickness0.4mm -3.2mm(16mil -128mil)
Min SMT Pitch0.3mm(12mil)
Min.Component mark0.15mm(6mil)
Min.Width of annular ring(finished)0.15mm(6mil)/side
Min pad opening0.076mm(3mil)
Min S/M Bridge±0.076mm(±3mil)
Carbon ink board manufacturing capability:1.Impedance Control:20K±10%  2.Hardness:6H  3.Bearable friction times :Above 200000 times
What we need:
Please tell us the information as below:
Board for what productSurface Finish
Number of LayersBoard Material
Copper Thickness(um)Board Thickness(um)
Solder Mask ColorPCB Dimensions(mm)
Silk Screen ColorMin Finished Hole Size(mm)
MillingMin Clearance(mm)
Min Track Width(mm)Other special requirements

Fast delivery:
PackagingVacuum Packing with desiccant,
Professional Export Carton.




Delivery
Time
 PrototypeMass production
(above 30m)
2LQuick turn:24h
Usual time:3-4days
5-10days
4LQuick turn:48 hours;
Usual time:5-6days
8-15days
6LQuick turn:72 hours;
Usual time:6-8days
10-16days
8LQuick turn:72 hours;
Usual time:8-10days
16-18days
10LQuick turn:96 hours;
Usual time:12-14days
18-20days
``````

Please send us your Gerber Files and PCB specifications;We will quote for you within 12 hours.

We always try our best!So we do, we conquer, and we get there!


pcb&pcba factory,pcb&pcba manufacture,ODM&OEM pcb&pcba,pcb&pcba design,pcb&pcba One-stop service for you.thank you.


Dongguan HRSC PCB Co., Ltd is a professional printed circuit board¨ PCB© Manufacturer with 15 years experience, specializing in single-sided, double-sided, multilayer and high density interconnector PCB, owning 100, 00 m2 factory, with 320 employee. Monthly output is 35, 000 m2.

HRSC has advanced processing equipments and highly skilled workers. Our products widely apply in lighting, electronic game machine, auto industry, communication equipment, computer peripheral product, medical devices, etc. The quality of products is highly praised by the industry. In 2013, we have introduced more advanced overseas brand machines, and strived to become fist-class PCB manufacturer.

We have successively obtained certification of UL, ISO14001, TS16949, passed SGS test. And meets RoHS and REACH standards. Then we are improving the management of market development, engineering design, manufacturing, quality assurance, after-sales service, and have enjoyed the industry good reputation and customers' trust. Presently our company has deeply trusted and well received by Japanese well-known enterprises and sino-foreign joint venture companies. To keep pace with the high-techn industries, HRSC always uphold the tenet "integrity, practical, innovation", exerting the advantages of market, technology and talents, to provide our customers with quality products and efficient service.
