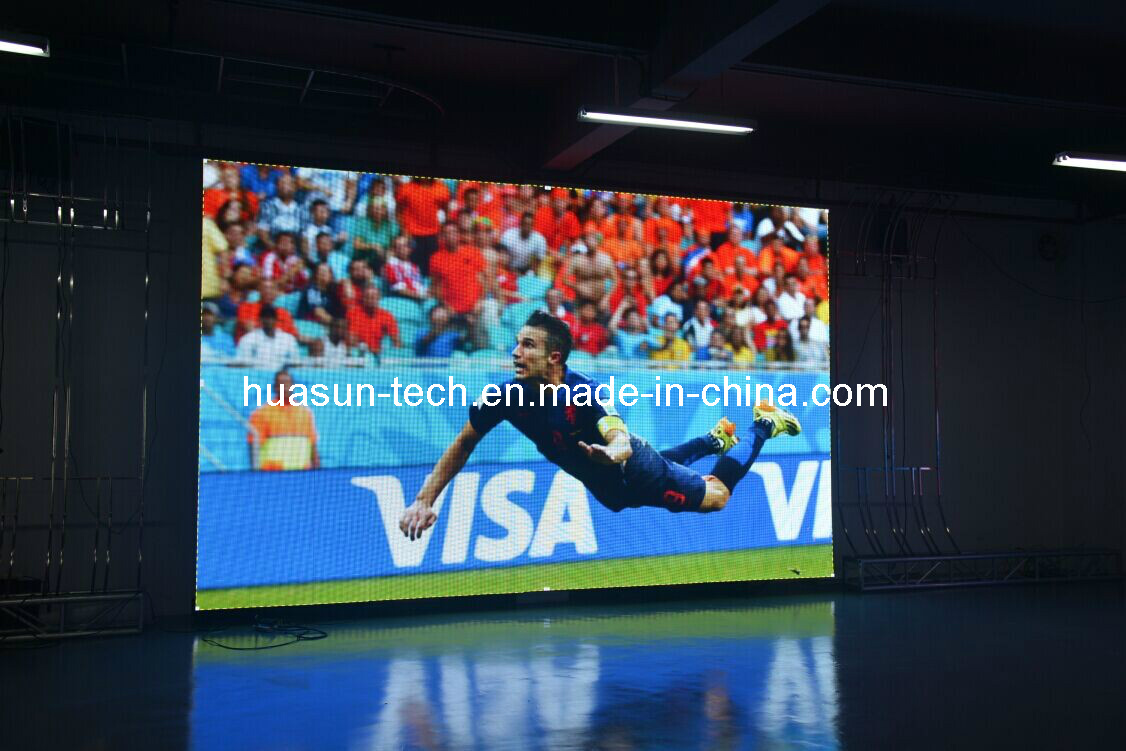

P6 Indoor LED Curtain Display

P6 Indoor LED Curtain Display
Price: US $ 1900/Square Meter
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: L/C,T/T
Prod Model: Rubik 6
Flexible LED Screen Body: ABS+PC Plastic
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Exhinbtion Shows
Pixel Configuration: 1R,1G,1B
IP Rating: IP54
Certification: RoHS
System Operating Platform: WIN XP
Pixel Pitch: P6.64mm
Pixel Density: 22682 Pixels/M2

Product Description




Rubik series is our newest product in 2013.
It's ever-changing like a Rubik's cube. This kind of LED display has some very special features: light weight, excellent pixel density, high definition, and varied combination. It looks like a book when folded and is similar to a painting after upfold. Because it's soft, it can be used for any shape LED display. Even better, the remarkably slim and light design makes installation and transportation wonderfully easy. A refresh rate of more than 10,000Hz produces an incredibly vivid, lifelike video and superior performance for all kinds of professional applications.



Features :

1. Unique body design, slim, light, and semi-transparent (is less than 25mm thick and

weighs less than 10kgs/sq m)

2. A refresh rate of more than 8,000Hz, outstanding image quality and elegant, good for

all kinds of professional uses

3. Flexible and foldable! Any irregular-shaped LED display is available

4. Reliable, built to the highest standards

5. Fast and easy to assemble, no tools

6. Modular for easy serviceability                                                                                           Specifications:




Model No Rubik 6

Pixel pitch6.64 mm

Density22682pixel /m2

Pixel configurationRGB 3-in-1 SMD

Brightness(White)2600 nit

Optima visual distance5m

 Max.power consumption280W/ m2

Average.power consumption93W/ m2

Recommendation size
(Size can be customized)W=425mm   L=1700mm   T=25mm

Weight10.5Kg/sq.m

Work voltageDC 24V

Brightness level16 levels

Bit depth per color16 bit

Bit depth per pixel48 bit

Visual angleHorizontal:120 degree ; Vertical:120 degree

Refresh rateMore than 7000Hz

Display mode1280X1024

Drive modeConstant current

Signal type
AV,S-Video,VGA,CVBS,HDMI,DVI

Control distanceHSYV; less than 100m

Body structurePlastic,Metal

Ingress protectionIP 54

Ambient temperature-20~+50 degree

Relative humidity10%~90%

InstallationHang

Power systemPower-600,Power-1200,Power system

Applications:
