P16 LED Display for Asynchronous Controller System

P16 LED Display for Asynchronous Controller System
Price: US $ 450-750/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: T/T,Paypal,Western Union
Prod Model: P16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 256*128mm
Pixel Configuration: 1r1g1b
Power Supply: 5PCS
Best Viewing Angle: 12-300m
Temperature: Working: -35~+85
Working Voltage: AC220V/110V± 10%
Refresh Frequency: ≥ 400Hz
Brightness Of White Balance: More Than 8000CD/Sqm
Mtbf: ≥ 10, 000hours
Life Span: ≥ 100, 000hours
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 600W / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Pixel Density: 3906dots/Sqm

Product Description

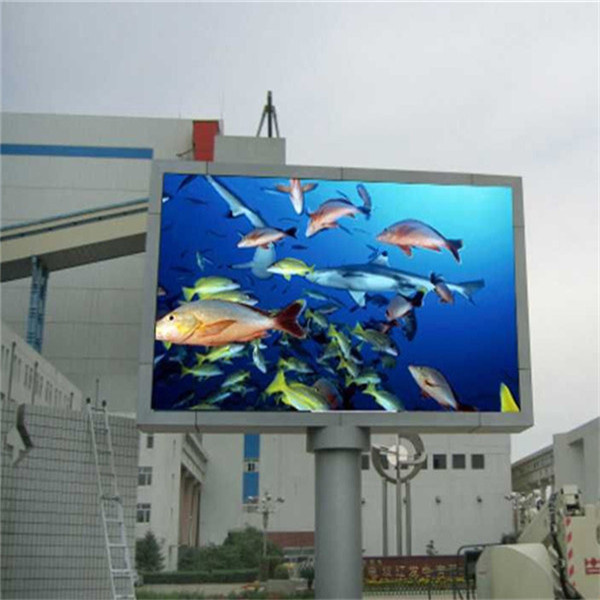

Outdoor LED Video Screen
1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 10, 000dots/sqm
DescriptionTechnical parameter
Unit moduleModule size256*128mm
Pixel pitch16mm
Pixel density3904dots/m2
Pixel configuration2R1G1B
Led specificationΦ 5ellipse
Pixel resolutionW: 16dots*H: 8dots
CabinetDimension1024mm*768mm*170mm
Quantities of module24pcs
Power supply5pcs
Thermal dischargeFan*2pcs
Total weight55kg
Best viewing angle12-300m
TemperatureStorage: -35~+85
Working: -35~+85
Thickness17cm can adjustable
Remarks: cabinet size can changed, upon project need.
PowerWorking voltageAC220V/110V± 10%
Average power consumption250-480W
Max. Power consumption≤ 560W/sqm
Current≤ 20mA(single LED)
Control systemCPUPentium4 or above
Operating systemWIN98/2000/NT/XP
Control methodSynchronization
Main technical parameterDriving deviceStatic scanning
Drive typeConstant Current driver IC
Refresh frequency≥ 400Hz
Grey scale/colors256 levels of each color(R/G/B)/16.7M color
Brightness of white balanceMore than 8000cd/sqm
Brightness adjustment256 levels of each color(R/G/B)by software
Operating ambient humidity10%--95%
Video signalPAL/NTSC
Control systemDVI display card+full color controller card
MTBF≥ 10, 000hours
Life span≥ 100, 000hours
FlatnessTolerance of interpixel ≤ 0.3mm
Tolerance of modules clearance≤ 0.6mm
Power switchAutomatic switch
Display mode1024*768
Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
SoftwareLED media player

Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
