OptimumNano Energy Co., Ltd. >> Lithium Battery 48V 100ah for Medical Mechine, Telecom Base Station

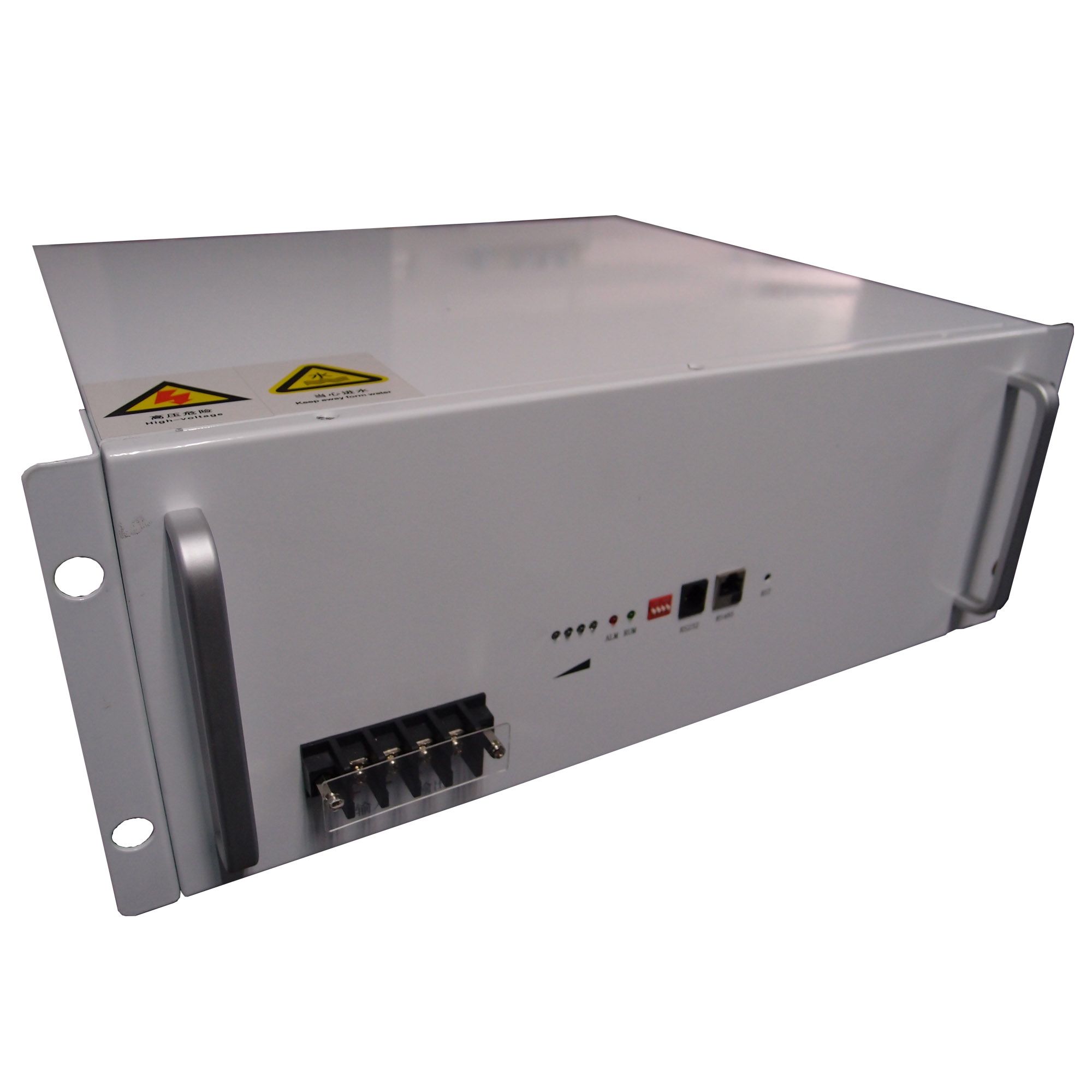

Lithium Battery 48V 100ah for Medical Mechine, Telecom Base Station

Lithium Battery 48V 100ah for Medical Mechine, Telecom Base Station
Price: US $ 2265.34-2475.12/Box
Trade Terms: FOB,EXW
Min Order: 1/Box
Pay Type: T/T,Western Union
Prod Model: OPT-48-20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cell: 32650 3.2V 5ah
Casing Material Of Single Cell: Nickel Plated Steel
Color: Blue, Black or Gray
Weight: Smaller and Lighter as Soon as Possible
Long Life Cycle (100%Dod): More Than 2000times at 1c
Type: Lithium-Ion Battery Pack
Connection Mode: Series and Parallel
Usage: Medical Mechine, Telecom Base Station
Electrolyte: Lithium Iron Phosphote

Product Description

lithium battery 48v 100ah for medical mechine, telecom base station

Specification:

 Electrical Charateristics


Nominal Voltage

51.2V

Nominal Capacity

200Ah

Impedance
(Max. at1000Hz)

≤50mΩ

Expected Cycle Life

2-3 years


Mechanical Characteristics


Height

500±2mm

Width

500±2mm

Length

300±2mm

Weight

~130.0Kg


Operation Conditions


Charge Method

Constant Current/Constant Voltage
(CC-CV)

Max. Charge Voltage

58.4V

Standard Charge Current

40A

Charge Temperature

0ºC~45ºC

Max. Continuous Discharge Current

100A

Peak Instant               Discharge Current

150A

Peak Instant               Discharge Time

10 seconds

Discharge Cut-off Voltage

32.0V

Discharge Temperature

-20ºC~65ºC

Storage Temperature

0ºC~45ºC






Advantages:


1. Green product : It is agree with environment protection.
 2. Cycle life : Can cycle 500-2000 times.
 3. Very safe : It have the best safety and steady performance.
 4. Main promise : Now it is the main promising product in the battery market.
 5. Light weight and smaller dimension : The dimension  compares with other battery.about 1/2-2/3 weight of lead acid
 6.Great capacity and more powerful,rechargeable battery : We can install many single cells in series and in parallet and it can fully discharge
 7.Can be charge by solar power charger.
 8.No memory effect : It can be recharged anytime,no reduction of the capacity

Contact us
 OPTIMUM BATTERY  CO.,LTD
ADDRESS:No. 9 BLDG, Zhukeng 1st Industrial park, Pingshan Town, SHENZHEN, CHINA 518057
TEL:86+18825253495
FAX:86755-84630785
 Welcome to OPTIMUM BATTERY  CO.,LTD for Inquiry and Purchase!
 Website:www.optimumchina.com




Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
