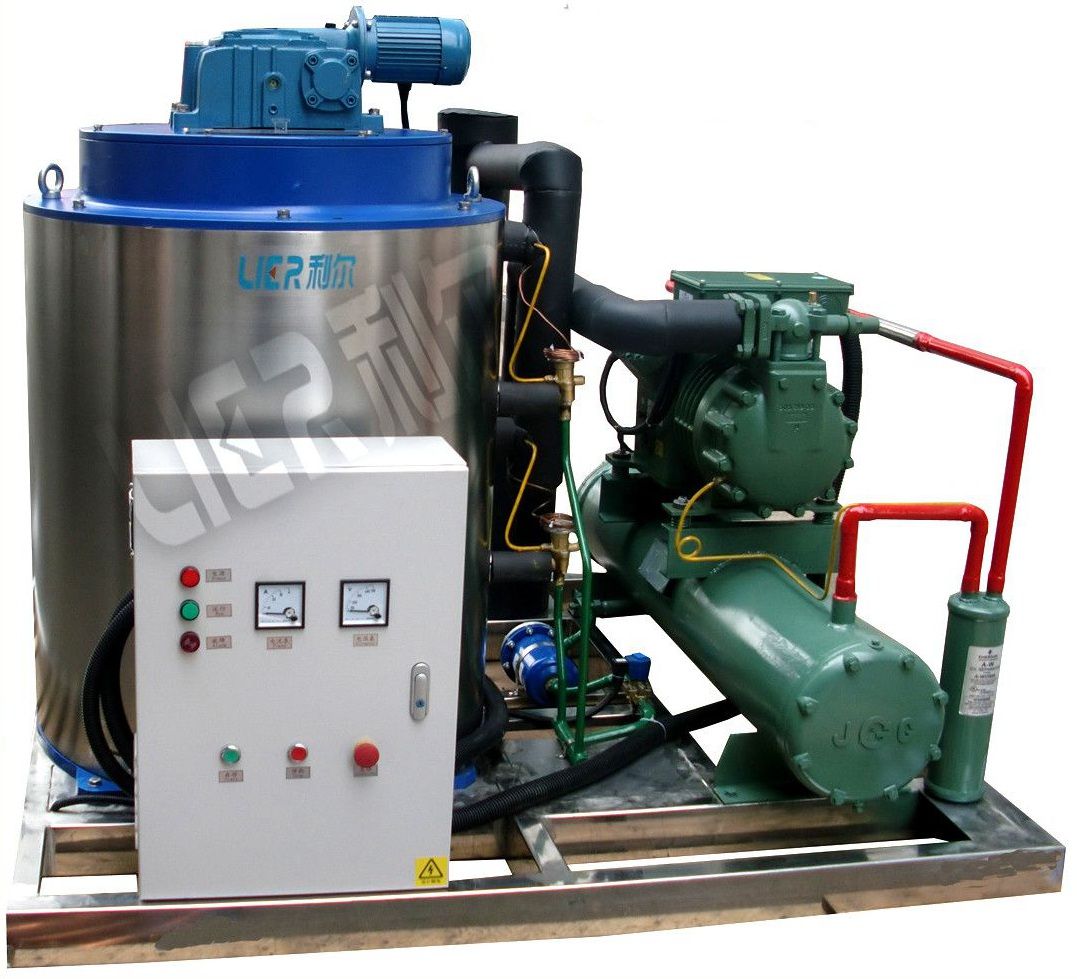

Lier Flake Ice Machine 200kg-60ton

Lier Flake Ice Machine 200kg-60ton
Price: US $ 5000-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: LR-02T-LR-60T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Style: Water-Cooling
Refrigerant: R22
Compressor: Germany Bitzer
Ice Thickness: 1.5-2.2mm
Ice Temperature: -5~-8 Centigrade
Standard Power Supply: 3p/380V/50Hz
Unit Measurement: 3100mm*2160mm*2265mm (L*W*H)
Unit Net Weight: 2940kg
Working Noise: Below 70dB
Certification: SGS
Condition: New
Ice Shape: Flake Ice

Product Description

Features and advantages of flake ice
1. Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact
Area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm
Of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing:
The producing of flake ice is very economical, it only requires 1.3rt refrigerating effect to make 1 ton of ice from 16c water.
3. Perfect in food cooling:
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing:
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Convenient for delivery:
Because the flake ice fairly dry, it will not stick with others during delivery or storage.

Application
1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.

2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.

3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.

4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.

5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

6. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.
7. Concrete cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediaof temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.

Why should choose us:
1. Cheaper price - more competitive.
2. Longer warranty period - 18 months.
3. Faster delivery speed and more on time.
4. Superior after-sales service guarantee.
5. More stringent quality assurance than foreign trade company.
6. And the most important: As one of few ice machine evaporator leading and professional manufacturers
Who have the self-production capacity, we provide it for many refrigeration companies and counterparts.
And they just need to assemble the ice machine with our evaporator and other refrigerating accessories.
Our evaporators are warmly welcomed at home and abroad.
 Model Daily output
kg/24h
Ref.Capacity
kw
Power supply Total power
kw
Refrige
rants
Unit Dimension
L*W*H(mm)
Net Weight kg
LR-02T 200 1.2 1P/220V/60HZ 1.1 R404A 760*730*600 105
LR-05T 500 3 3P/380V/50HZ 2.62 R404A 1310*890*780 195
LR-1T 1000 6 3P/380V/50HZ 4.31 R404A 1310*970*880 227
LR-1.5T 1500 9 3P/380V/50HZ 8 R404A 1310*970*980 364
LR-2T 2000 12 3P/380V/50HZ 10 R404A 1500*1095*1050 425
LR-2.5T 2500 15 3P/380V/50HZ 12 R404A 1500*1095*1200 468
LR-3T 3000 18 3P/380V/50HZ 15.11 R404A 1750*1190*1200 530
LR-4T 4000 24 3P/380V/50HZ 18.32 R404A 1700*1550*1250 646
LR-5T 5000 30 3P/380V/50HZ 23.12 R404A 1750*1550*1600 765
LR-6T 6000 36 3P/380V/50HZ 26.12 R404A 1750*1550*1600 825
LR-8T 8000 52 3P/380V/50HZ 31.5 R404A 2530*1830*1680 978
LR-10T 10000 65 3P/380V/50HZ 45.5 R404A 2530*1830*1680 1540
LR-15T 15000 97.5 3P/380V/50HZ 64 R22 3100*2090*1865 2120
LR-20T 20000 130 3P/380V/50HZ 75.8 R22 3695*2090*2050 2860
LR-25T 25000 162.5 3P/380V/50HZ 75 R22 3695*2090*2265 2940
LR-30T 30000 210 3P/380V/50HZ 86 R22 3880*21200*2400 3240


Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.

With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.

We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.

"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
