Qingdao JGQ Boiler Technology Co., Ltd. >> JGQ Water Heaters

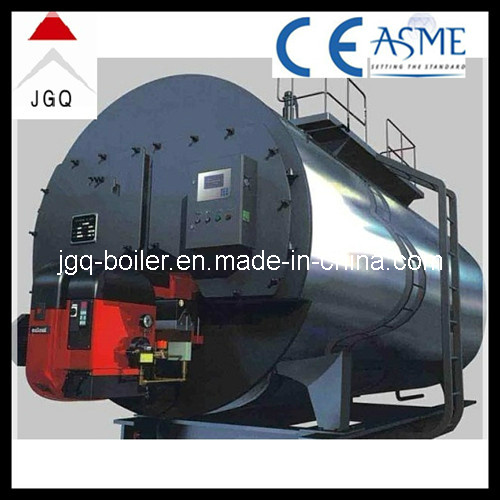

JGQ Water Heaters

JGQ Water Heaters
Price: US $ 5000-30000Set
Trade Terms: FOB,CFR,CIF
Min Order: 1Set
Pay Type: L/C,T/T,Money Gram
Prod Model: JGQ-WH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Pressure: 1mpa
Design Efficiency: 91%
Light Oil Fuel Consumption: 65kg/H
Heavy Oil Fuel Consumption: 69.7kg/H
City Gas Fuel Consumption: 153.1nm3/H
Natural Gas Fuel Consumption: 76.8nm3/H
Blowdown Tube Diameter: 1-Dn40mm
Safty Valve Tube Diameter: 1-Dn50mm
Chimney Diameter: 350mm
Place Style: Horizontal
Function: Hot Water Boiler
Fuel: Gas-Fired
Usage: Industrial
Pressure: Low Pressure
Burning Style: Chamber Combustion Boiler
Structure: Fire Tube
Drum Placement: Horizontal Boiler
Media: Hot Water
Installation: Packaged Boiler
Water Circulation: Forced Circulation
Manufacturing Level: A

Product Description

JGQ Gas or Oil Fired Fire Tube Hot Water Boiler

Descriptions

Automatic oil or gas fired boilers series WNS have two types. One is steam boiler, and the other is hot water boiler.

1. The capacity of steam boiler is 1~10t/h, working pressure is 0.7~1.6MPa.
2. Output of the hot water boiler is 0.7~7MW, water service temperature is 95degree or 115degree, water return temperature is 70degree.
3. This series of boilers are adopted the structure of horizontal, internal-combustion, three-pass and full wet back.
4. The combustion chamber consists of corrugated internal furnace and wet smoke box.
5. The fuel oil is atomized and injected from the burner into the combustion chamber where it's burnt into smoke of high temperature.
6. The smoke enters the second pass threaded smoke tubes after the radiation and the convection heat transfer occurred in the furnace and the smoke box, then it's back to the third pass smoke tubes, and proceeds with the convection heat transfer again.
7. At last it passes the rear smoke box and is dispelled via the chimney.


Service system

1, With rich experience in design and manufacturing technology of product, strong technical power and reliable product quality, as well as perfect quality assurance system and scientific management mode, JGQ Company will assure you to use JGQ Brand heat transfer oil boiler and various chemical mechanical equipments safely.
2, If only there is need, we shall serve you wholeheartedly to ensure you be free away from troubles.
3, Promise before sale: We shall help user to choose boiler type for the most economic and appropriate product, keep it meeting the requirements on technology flow or special design of client, provide user various technical consultation and related information, make on-site visit, design place for equipment, involve in fundamental construction, train stoker in accordance with user's requirements on structural features and performance of equipment.
4, Promise after sale: We shall guide on how to install, debug, make regular visit to know about application condition of product, provide spare parts for the one easy to wear and damage, standard parts and fittings forever. With 24 hours' service telephone, all users can call us when equipment is in trouble, our technicians will be on-duty around clock to deal with any problems, and then solve your future worry if having.


Three Guarantees

1, Warranty: One-year commitment to bear the cost of repair produced by manufacture reasons.
2, Replacement: Free replacement for severe quality problems found within one year.
3, Return boilers can be returned if severe quality problems were found and boliers has been replaced within 6 months.
Oil Gas Fired Hot Water Boiler(0.7MW)
Item Unit
Rated working pressure  Mpa 1
Rated supply/return water temperature   /
Design efficiency  % 91
Boiler circulation water amount  m3/h
Fuel consumption light oil  kg/h 65
heavy oil  kg/h 69.7
city gas  Nm3/h 153.1
natural gas  Nm3/h 76.8
Supply/return water tube diameter   mm
Blowdown tube diameter  mm 1-DN40
Safty valve tube diameter  mm 1-DN50
Chimney diameter  mm 350
Biggest transportation size mm 2718
mm 1500
mm 1733

Company Information

Qingdao JGQ Boiler Co., Ltd. is a professional producer of boilers, located in the economic development zone of Qingdao, a scenic seaside city in Shandong province.

We specialize in many kinds of Steam Boiler, Thermal Oil Boiler and Hot Water Boiler, etc. Our products have been exported to more than 60 countries in Korea, India, Indonesia, Philippines, Turkmenistan, Thailand, Kazakhstan, Chile, Brazil, Ecuador, etc. Our factory sold 400 sets boilers each year with highly reputation.

Covering more than 12, 000 square meters, our company has more than 300 skilled workers, engineers and technicians devoting themselves to producing, designing and developing the products according to customers' requirements.

With consistently high quality and efficient after services, we will certainly be your first choice.

Company Superiority

The factory is well-equipped, has more than 1200 sets various types of equipments, among them 428 sets of major equipments. The key production equipments include two production lines of 20 end diaphragm wall and 6 end membrane wall, Serpentine pipe automatic welding operation machines, 1400mm gas burning car-bottom heat treatment furnace, 1600mm and 800mm rows tube bending machines, IF bender, cutting machines, CNC cutting machine, automatic submerged arc welding machine, 100mmradial drilling machine, automatic welding machine, etc.

The technological equipments are in the domestic advanced level. The company also is equipped with the most advanced testing equipment 76 sets, mainly include electromagnetic yoke flaw detector, universal testing machine, metallographic tester, X-ray detector, physical vertical flaw detector and other equipment to ensure product manufacturing quality.

Qingdao JGQ Boiler Technology Co., Ltd in product quality has been the unremitting efforts of high returns. In 1999, once passed the ISO9001 international quality management system certification; In 2002 obtained the International Certification of quality management certification, and successfully passed the international quality management system 2000 version of call-up; In 2008 the company received the industry's most authoritative in the international arena-The ASME quality system certification, and has excellent access to equipment management unit of Ministry of Machine Building Award and Quality Management Award. Our company provide a large number of high-quality, high efficiency, energy-saving environmental protection boiler to many users at home and abroad.

The SZL series water cooling arch and membrand water cooling wall boiler is a new type water tubes which is developed by our company independently based on the features of field assemble boiler arch. For the first time in the country, the technology of water cooling arch and membrane water cooling are smartly used in this series, actually the technology was only used in large scale chain grate boiler combustion systems before and the technology is in the leading level of China and even in the world. It has features of wide range of over load adjusting, can be adjusted to many kinds of coal, thus it is awarded the best design of this kind of boilers, the design programme has been imitated and fabricated by dozens of boiler manufacturers in the nation.
