High Performance Bi-Directional Distributive Amplifier

High Performance Bi-Directional Distributive Amplifier
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CSP 550M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Reverse Bandwidth (MHz): 5 ~ 65(or Specified by User)
Forward Nominal Gain (Db): 30
Reverse Nominal Gain (Db): 0
Flatness In Band (Db): ±0.75
Nominal Input Level (Dbuv): 72
Nominal Output Level (Dbuv): 102
Gain Adjustment Range (Db): 0 ~ 18
Type: CATV(Cable Television)Equipment
Certification: CE
Condition: New
Function: Amplifier

Product Description

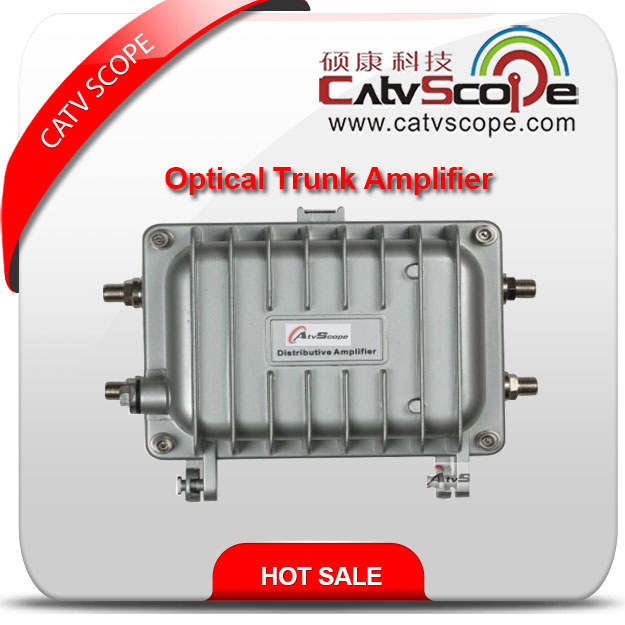

Bi-Directional Distributive Amplifier

1.Suitable for distributive amplification in single-way or two-wayCATV system;
2.Manual gain control and slope control;
3.In aluminium-alloy housing, waterproof, dustproof and fast heatdissipation and fine screening characteristic;
4.Provide two power supply method, AC30~60V or AC220V;
5.Using plug-in module design to make upgrade easy;
6.Two-way platform for selection;
7.High capability to price ratio.

Parameters
Type Parameter

CSP 550M

CSP 750M

CSP 860M

Forward Bandwidth (MHz)

(45)87 ~ 550 (or spec ified by user)

(45)87 ~750 (or specified by user)

(45)87~ 862 (or spec ified by user)

Reverse Bandwidth (MHz)

5 ~ 65(or specified by user)

Forward Nominal Gain (dB)

30

Reverse Nominal Gain (dB)

0

Flatness In Band (dB)

±0.75

Nominal Input Level (dBμV)

72

Nominal Output Level (dBμV)

102

Gain Adjustment Range (dB)

0 ~ 18

Slope Adjustment Range (dB)

0 ~ 18

C/CSO (dB)

-63

-62

-61

C/CTB (dB)

-66

-65

-64

Noise Figure (dB)

≤8.5

Return Loss (dB)

≥16

≥16(45 ~ 550MHz) ≥14(550~750MHz)

≥16(45 ~ 550MHz) ≥14(550~862MHz)

Input, Output Impedance (Ω)

75

Gain Drift (dB)

±1 (-25 ~ + 55 C )

Supply Voltage (V)

AC 30 ~ 60 or AC 220 ±10%

Thunderstroke Immunity (kV)

5 (10-700μs)

Dimension

185×140×95 (mm)
