Guangzhou YunQiang Electronics Co., Ltd. >> Fp10000q 1350W Four Channels Subwoofer Power Amplifiers

Fp10000q 1350W Four Channels Subwoofer Power Amplifiers

Fp10000q 1350W Four Channels Subwoofer Power Amplifiers
Price: US $ 450-680/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: FP10000Q
Shipping Charges: Very Low
Circuit: Switch Power Supply Amplifier
Circuit Protection: Fully and Perfect
Type: Professional Amplifier
Usage: Club, Stage, Shool, Church
Used For: Professional
Tube Type: Transistor Amplifier
Function: Post Amplifier
Output Number: 4
Element Number: Push-Pull Amplifier
Conductive Mode: AB
Sound Channel: 4.0
Voltage: 90V~240V

Product Description

FP10000Q 1300W 4CH Pro Switch Power Supply Amplifier

1pc sample accepted

welcome OEM, warranty 1 year


Parameters:

Channel number: 4CH

8Ohm stereo, 1350W

4Ohm stereo, 2700W

2Ohm stereo, 2500W

8Ohm bridge: 4200W

4Ohm bridge: 5000W

Gain: 35dB VPL:101V

THD+N: <0.1%

THD: <0.05%

S/N ratio: >112dB

Crossover: >70dB

Frequency: 6.8Hz-34KHz

Input impedance: 20Kohm

Gain selecrable: 23,26,32,35,38,41,44dB

Input connector: XLR

Output connector: Neutrik speakon

output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source

Cooling: 2 fans, front to rear airflow, temperature control

Size: 483*88*398mm

weight: 15kgs

outlook: black painted chassis, with black painted steel front

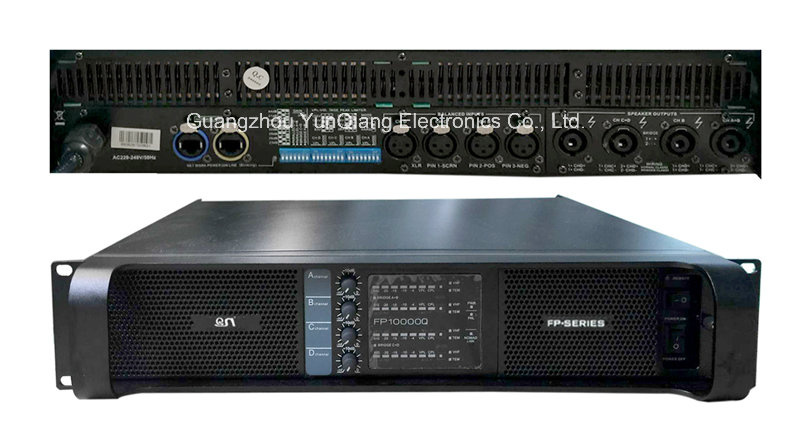

Front picture:




Back panel:

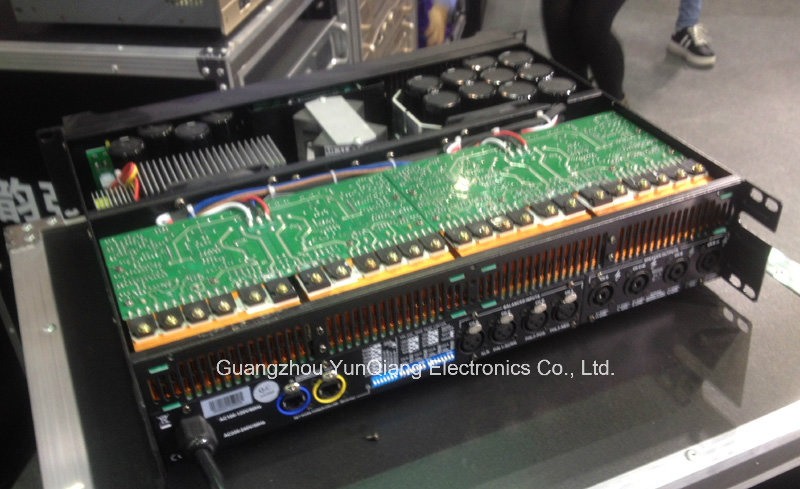

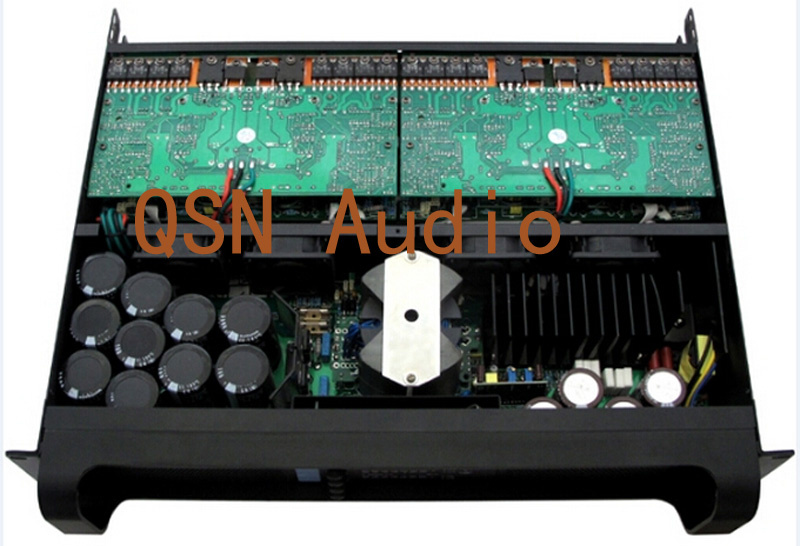

Inside Picture:

MODELFP10000Q
Output Power20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)1300WX4
4ΩStereo Power(RMS)2100WX4
2ΩStereo Power(RMS)2500WX4
8ΩBridged Power(RMS)4200WX2
4ΩBridged Power(RMS)5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass ProtectionACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush
Operating voltage130-265 V / 65-135 V selectable
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension560×180×500mm
Net weight(kg)14
Gross weight(kg)17.3
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,

The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.

Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.

Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
