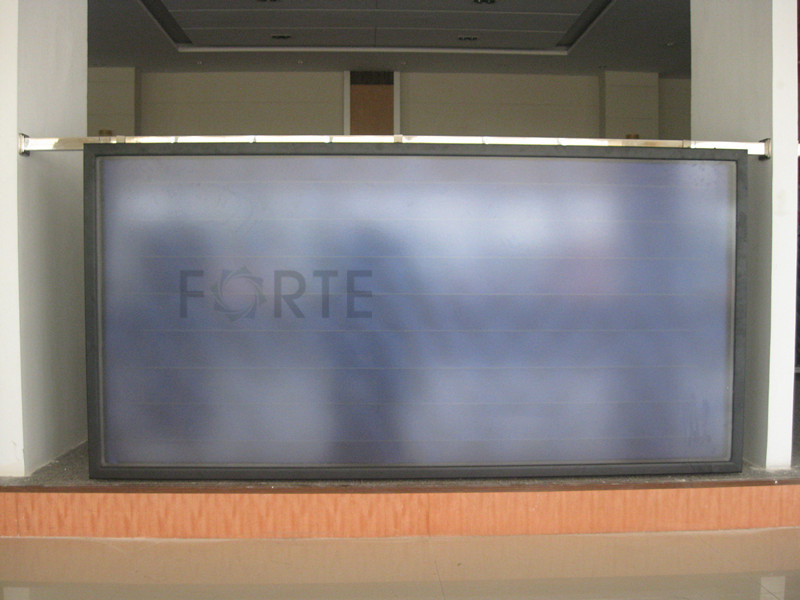

Flat Plate Solar Hot Water Heater

Flat Plate Solar Hot Water Heater
Price: US $ 130/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Pressure 6 Bar: Working Pressure 9 Bar
Application: Air Conditioning System
Type: Pressurized
Pipe Material: Copper and Aluminum

Product Description

Flat plate High pressure high efficient Solar collector(150L, 200L)
high efficient Flat plate solar collector
solar panel  heater  solar heater /water heater
Flat plate solar water heater
Flat plate solar collector-laser welding or ultrasonic welding absorber,full plate of aluminum absorber
pressurized flat  Solar collector-maximum 9 bar pressure
High pressure flat plate solar collector
high efficient flat plate solar collector
solar water heating system
solar Panel heatingsystem
Balcony flat plate solar collector
Splite solar collector   solar water heating system
high efficient solar collector  Solar hot water heater

Flat Plate Solar Collector  high pressure solar collector
Material
Copper and Aluminum combined solar collector  All red copper black Chrome coated collector All red copper Blue Tec Absorber collctor  Aluminum 1PC black Chrome coated collector Aluminum 1PC aluminum coated Bluetec collector
Coating Anodized treatment Black Chrome coated Germany imported Selective coating Black Chrome coated 1PC Germany imported
Construction type  pipe+fin pipe+plate pipe +plate pipe+plate pipe+plate
Absorption rate  0.95± 0.03      0.96± 0.03      0.96± 0.02      0.96± 0.03      0.96± 0.02
Emmision rate 0.18± 0.05 0.09± 0.05 0.05± 0.02 0.09± 0.05 0.05± 0.02
Aluminum fin  140x 1855 x 0.15                              7 140x 1850 x 0.15                140x 1850 x 0.12                  1925x 925x 0.3                                    1925x 925x 0.3
Header pipe  Φ 25 x 0.5  Φ 25 x 0.5  Φ 25 x 0.5  Φ 25 x 0.5  Φ 25 x 0.5
Grid pipe Φ 10 x 0.5 Φ 10 x 0.5      7PCS Φ 10 x 0.5      7PCS Φ 10x 0.5        7PCS Φ 10x 0.5        7PCS
Overall size  2000 x 1000 x 76 2000 x 1000 x 76 2000 x 1000 x 76 2000 x 1000 x 76 2000 x 1000 x 76
Frame thickness   0.85mm   0.85mm   0.85mm   0.85mm   0.85mm
Frame color  Silver white silver white silver white Silver white silver white
Gross area 2m2 2m2 2m2 2m2 2m2
Absorption area  1.85m2 1.85m2 1.85m2 1.85m2 1.85m2
Seal  Anti-aging PVC  Anti-aging PVC Anti-aging PVC Anti-aging PVC Anti-aging PVC
Cover quantity 1 1 1 1 1
cover material 4mm float glass 4mm tempered glass  4mm tempered glass  4mm tempered glass 4mm tempered glass
transmittance 89% 89% 89% 89% 89%
bottom cover 0.30mm Zinc coated plate 0.30mm Zinc coated plate 0.30mm Zinc coated plate 0.30mm Zinc coated plate 0.30mm Zinc coated plate
Insulation(mm) bottom 16K*30 fiber glass                          frame 48K*20 fiber glass bottom 16K*30 fiber glass  frame 48K*20fiber glass  bottom 16K*30fiber glass      frame48K*20firber glass bottom16K*30fiber glass  frame 48K*20 fiber glass bottom 16K*30fiber glass      frame48K*20fiber glass
Maximum pressure 0.6MPa 0.6MPa 0.6MPa 0.6MPa 0.6MPa
Weight 34kg 35kg 35kg 35kg 35kg
Warranty    3 years 3 years 3 years 3 years 3 years

OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
