Shenzhen Mansion Electronic Co., Ltd. >> Class D Mini Stereo Amplifier with 100V/70V PLA2

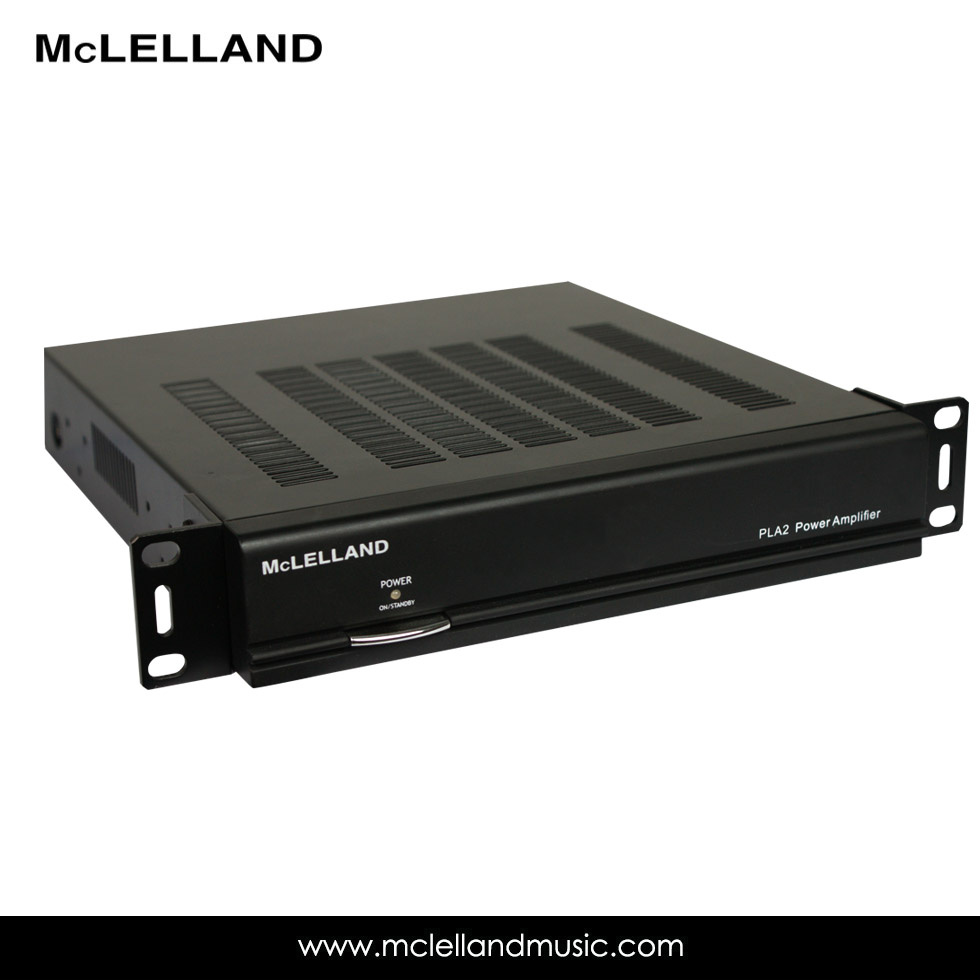

Class D Mini Stereo Amplifier with 100V/70V PLA2

Class D Mini Stereo Amplifier with 100V/70V PLA2
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: PLA2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Mini Amplifier
Usage: AV
Used For: Civilian
Tube Type: IC Amplifier
Function: Amplifier Combined
Element Number: Push-Pull Amplifier
Conductive Mode: D
Sound Channel: 2channel Amplifier
Output Number: 2 Channel Amplifier
Voltage: AC220V or AC110V

Product Description

Feature:
* It used 9.5 inch special tiny design.
*Two Channels  Model - 120W RMS.
* Stereo into 4-8 ohm loads.
* Bridgeable for 70V (direct drive).
*   Power down after ~15 minutes of no signal & comply with Energy
 Star power consumption limits of < 0.5W in standby
*Yellow LED (front panel) to indicate this mode is active
*2x RCA analog audio frequency inputs on 2ch amp
*2x amplifier outputs, bridgeable to 1 channel
*Bridged channels capable of driving 70V loads
*Volume ? Auto on/off signal sensing ? 80Hz HPF
Natural cooling without Fan
* TRIGGER could be external remoting ON/OFF.
*Short circuit protection,Overheating protection,Auto function.
Spec.:
*4ohm Stereo Mode 120W output ,per channel @ < 1 % THD+N
*8ohm Stereo Mode120W output, per channel @ < 1 % THD+N
*70V Bridge Mode240 W output, per channel @ < 1 % THD+N
* Frequency Response: 20Hz-20kHz +0/-2dB @ 4ohm load
*Signal to Noise: >90dB A WTD
* Crosstalk: >70dB,80Hz low cut filter
*Product dimensions:214mm(L)*44mm(W)*250mm(D)
