China Outdoor CATV Trunk Amplifier with Agc

China Outdoor CATV Trunk Amplifier with Agc
Price: US $ 0.05-1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: CATV Trunk Amplifier DT-TAA-8200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Frequency: 47/85 ~860/1003MHz
Gain: Higher Than 38db
C/CTB: Higher Than 69db
Model: Dt-Taa-8200 CATV Trunk Amplifier
Dimension: 260mm X :200mm X 130mm
Operating Voltage: AC150~265V
Certification: ISO
Condition: New
Function: CATV Trunk Amplifier
Type: Outdoor CATV Amplifier

Product Description

China Outdoor CATV Trunk Amplifier with AGC

Outdoor CATV Trunk Amplifier Description

1. CATV trunk amplifier with AGC, DT-TAA-8200 outdoor bidirectional amplifier is a high gain
High output bidirectional AGC amplifier
2. It is suitable to the 1GHz CATV bidirectional cable transmission network
3. Forward Path: (Operating Frequency: 47/85 ~860/1003MHz, Highest Gain: ≥ 38dB, C/CTB: ≥ 69dB, C/CSO: ≥ 67dB. )
4. Dimension: 260mm x: 200mm x 130mm.

Outdoor CATV Trunk Amplifier Feature

1. Add RF AGC control function.
2. Plug-in equalizer and attenuator, GaAs power doubler output.
3. Two-channel splitter or tap output, cast aluminum waterproof shell.

Outdoor CATV Trunk Amplifier Application

Building large or middle-sized CATV bi-directionaltransmission network.

Outdoor CATV Trunk Amplifier Technology Parameters
ItemUnitTechnical Parameter
Forward Path
Frequency rangeMHz47/85 ~860/1003
Rated gaindB30343638
Min full gaindB≥30≥34≥36≥38
Rated Input LeveldBμV72
Rated Output LeveldBμV106/108
Flatness In BanddB±0.75
Noise FiguredB≤ 10
Return LossdB≥ 16
ATTdB1-18 (Fixed, 1dB stepping, selectable)
EQdB1-15 (Fixed, 1dB stepping, selectable)
C/CTBdB≥67Test condition: 79 channels.
Output level: 53MHz/550MHz/750MHz.
99dBuV/105dBuV/108 dBuV
C/CSOdB≥69
AGC Pilot FrequencyMHz168.25 (Or specified by the user)
AGC CharacteristicdB±4 (input) /±0.5 (output)
Group Delayns≤ 10  (112.25 MHz/116.68 MHz)
Signal to Hum Ratio%< 2
Gain StabilitydB-1.0 ~ +1.0

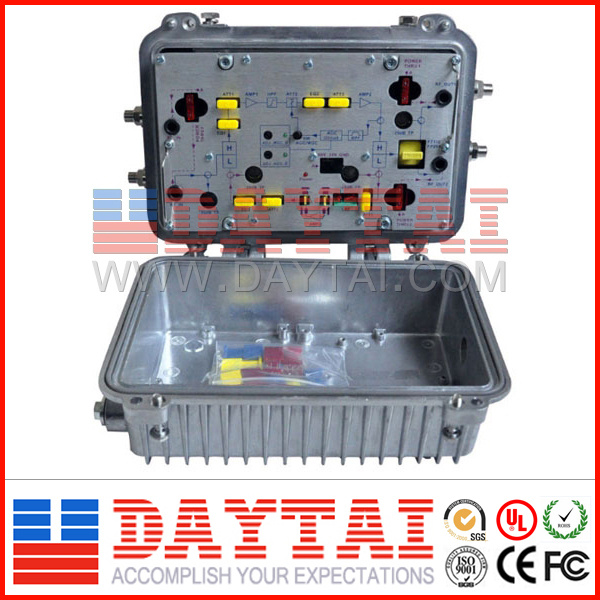

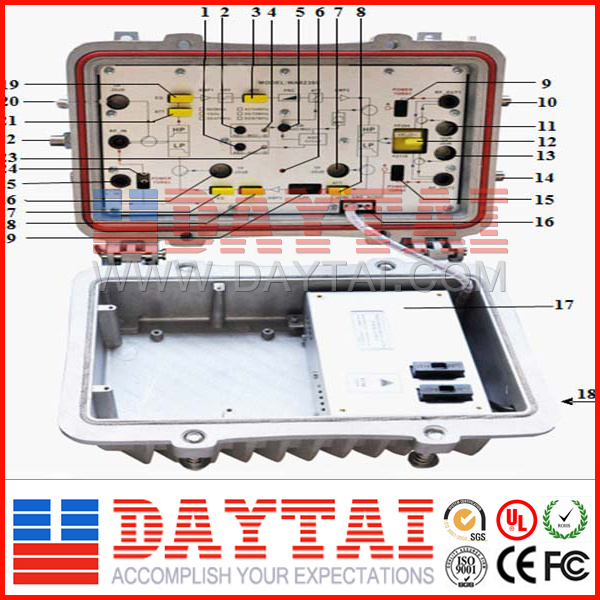

Pictures of CATV Trunk Amplifier:
