Ceramic Burner for Gas Stove

Ceramic Burner for Gas Stove
Price: US $ 0.0001/Piece
Trade Terms: FOB,others
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: Ceramic Burner for Gas Stove, Ceramic Burner
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Ceramic Burner
Size: 100*14mm, 80*14mm
Material: Cordierite
Usage: Gas Stove, Barbecues, Gyro Cookers, Broilers
Principle: Regenerative Heat Exchanger
Structure Material: Ceramic
Application: Heater
Heat Transfer Surface: Plate Heat Exchanger

Product Description

ceramic burner for gas stove

We pingxiang chemshun ceramics Co., Ltd with 10years experies of exporting ceramic honeycomb products.

Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove. This product has good thermal shock resistance ( no cracks on the product if the honeycomb ceramic with 1000 C is in the water with 20 C for 3 times ), high mechanical strength ( crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high resistance for erosion. If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion as below:

1\Saving gas more than 22%
2\Making Inflammable combustion
3\Decreasing the CO and NOx poisonous gas disposal and remove the factor for harm human body's health.

4\Operating safety without by wind influence when operating in outdoors.
Our company's infrared combustion ceramic plate - honeycomb ceramic can be applied to different gas. When customer makes the order for it, he or she should provide the parameters such as the product size, CPSI, cell shape, the gas style, the shape on the upper side. If the customer needs the one with coated catalyst, he or she should provide the catalyst color.

Form-1: Application of ceramic burner
BarbecuesGyro Cookers
BroilersPizza Ovens
Convection OvensPressure Fryers
Deep Fat FryersProcess
EvaporatorsRanges
Gas OvensRotisserie Ovens
GriddlesSpace Heaters
Greenhouse CO2Sear Cookers


Form-2: technical data of ceramic burner
ItemIndexSpecifications
MaterialsCordieriteWe can provide you
the product by you desire.
Water absorption50.4%
Open Porosity61%
Specific gravity0.6-0.9g/cm3
Thermal expansion coeffecient1.5-3(×10-6K-1)
Temperature softening>1280
Cooking Surface Temperature1000-1200
CO release≤0.006%
NOx release≤5ppm

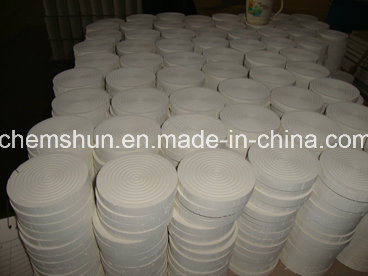

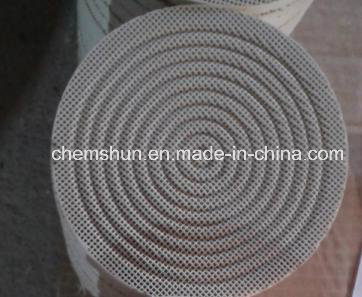

Pictues shows for Ceramic burner:




Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95% & 92% Al2O3 alumina wear resistance ceramic products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:

1) 95% Al2O3 Alumina wear resistantceramic liner / linings and high quality grinding media.

(we also can supply the Al2O3: 92% products according to detailed requirement):

Chemshunmanufacturing wear resistance Ceramic liner including: Alumina plain tile, ceramic weldable plate, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.

2)Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.

Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.

Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
