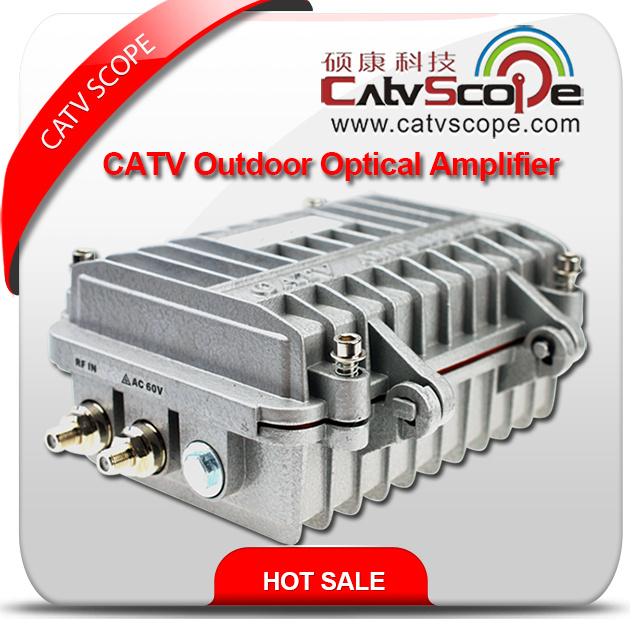

CATV 2way Output Outdoor Trunk Line Optical Amplifier

CATV 2way Output Outdoor Trunk Line Optical Amplifier
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: CSP-860K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Range: 47-860MHz
Forward Gain: 26/30db
Flatness: +/-0.75db
Supply Voltage: AC 30-60V or AC 220 V
Outports: 2
Type: Fiber Amplifier
Wiring Devices: ODF
Certification: CE
Condition: New

Product Description

CATV 2way Output Outdoor Trunk Line Optical Amplifier


Features
1.Suitable for trunk amplification and extending amplification insingle-way CATV system;  Manual gain control and slope control;
2. In aluminium-alloy housing, waterproof, dustproof and fast heatdissipation and fine screening characteristic;
3. Provide two power supply method,AC30~60V or AC220V;
4.Efficient R-transformer for selection;
5.Using plug-in module design to make upgrade easy;
6.High capability to price ratio.

Technical Parameters
Type ParameterCSP550K-26CSP550K-30CSP750K-26CSP750K-30CSP860K-26CSP860K-30
Bandwidth (MHz)45~55045~75045~862
Nominal Gain (dB)263026302630
Flatness In Band (dB)±0.5±0.75±0.75
Nominal Input Level (dBμV)72
Nominal Output Level (dBμV)981029810298102
Gain Adjustment Range (dB)0~18
Slope Adjustment Range (dB)0~18
C/CSO (dB)-65-63-64-62-63-61
C/CTB (dB)-68-66-67-65-66-64
Noise Figure (dB)≤8.5
Return Loss (dB)≥16≥16(45~ 550MHz)≥16(45~ 550MHz)
≥14(550~750MHz)≥14(550~862MHz)
Input, Output Impedance (Ω)75
Gain Drift(dB)±1 (-25~ +55°C)
Supply Voltage (V)AC 30~ 60 or AC 220   ±10%
Thunderstroke Immunity (kV)5 (10-700μs)
Dimension(mm)225×180×85
