Xiamen Qirui Metal and Plastic Co., Ltd. >> Baking Machine Commercial Catering Equipment CE Waffle Maker

Baking Machine Commercial Catering Equipment CE Waffle Maker

Baking Machine Commercial Catering Equipment CE Waffle Maker
Price: US $ 299.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal
Prod Model: WB2000-R-220V
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Voltage: 220VAC
Power: 1500W
Application: Waffle

Product Description


1.  Overview
  WB2000 series waffle maker (waffle baker) is for commercial use, it has 110VAC & 240VAC two series, 120vac is for America and same voltage market, 240vac is for China, European and same voltage market. The waffle baker is based on stainless steel shell, U bracket and aluminum heating pedestal and grids. space-saving design with the smallest footprint in the industry, computer controlled temperature and bake time, TeflonTM Coated baking grids.

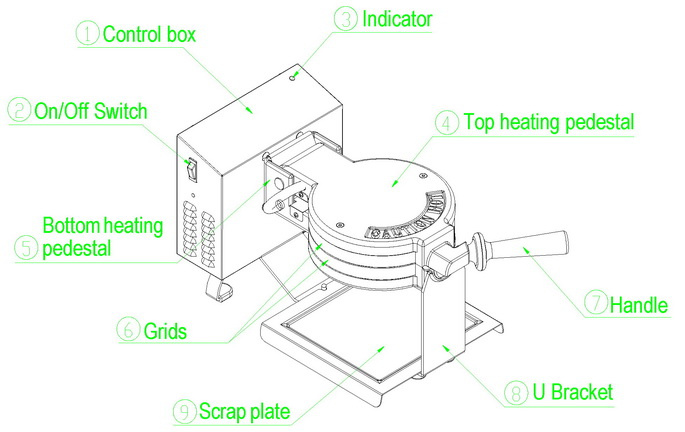

2. Structure diagram

3. Operation
1 Preheat
 a. Plug in the power plug then turn on the power switch.
Bell: ring 3 times
Indicator: flash 3 times
b. After 12-15 minutes
Bell: Discontinuous ring first, then ring continuously,
Then stopped at last
Indicator: light on continuously
It means preheat finish and ready for baking

2 Open the Top grids then pour one cup mixes into the
centre of the grids, Close the top grids and turning it over 1800
Bell: ring 1 times
Indicator: light off
        It means beginning to bake the waffle

3 After 2.5 minutes
Bell: Discontinuous ring first, then ring continuously,
Then stopped at last
Indicator: light flash, light on, light flash
    It means baking finish

  4 Turn back the grids and open the grids then remove
the waffle
Bell: ring 1 time
Indicator: light on
Close the top grid keep on standby if not to cook again
Please turn off power if keep on standby for a long time

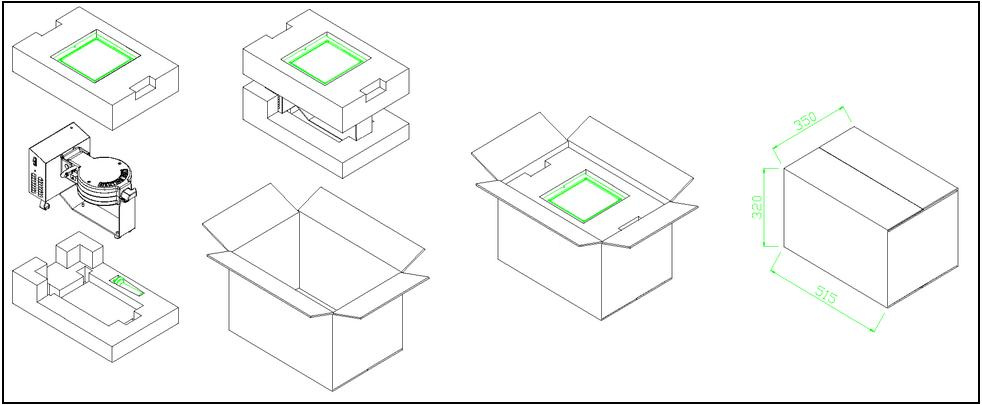

4. Packaging


Voltage        PowerGrid ODMode of operation5Period
120VAC 1500w  188mm  Continuous  2.5-3min
  ETL
 240VAC  Nw: GW Product size Carton size
   CE 9.3Kg  10.5Kg 480X232X234mm   515x350x320mm

Qirui Metal and Plastic Co., Ltd. was established in Xiamen in 1998. Our factory produce strictly according to ISO9001: 2008 international quality system. We have the facilities and capabilities of stamping, deep drawing, Alu/Zinc casting, injection molding, AC/DC motor fabrication, CNC machining and so on, skilled personnel, over 15 years of production experience to consistently provide high quality parts or components that meet your exact specifications, also we have R&D department with 3D printer to facilitate prototype development and offer a comprehensive OEM/ODM service package including consulting, engineering, cost analysis, and manufacturing. for instance, ours' chocolate fountains, Belgium waffle makers and frying pans are very popular around the world.
In addition, making metal and plastic parts, commercial and household appliance, one lighting department has been set up to facilitate LED lighting components and LED lights development, especially indoor LED lighting as LED bulb, down light, spot light and panel light to meet the LED lighting marketing requirement.

Please call or e-mail us today to see what solutions we can provide your company or to find out how we can help you with your project!
