ShenZhen Better Group Limited >> Al LCD Screen Customized 8 Color LCD Display for Air Conditioner Micro-Wave Oven LCD

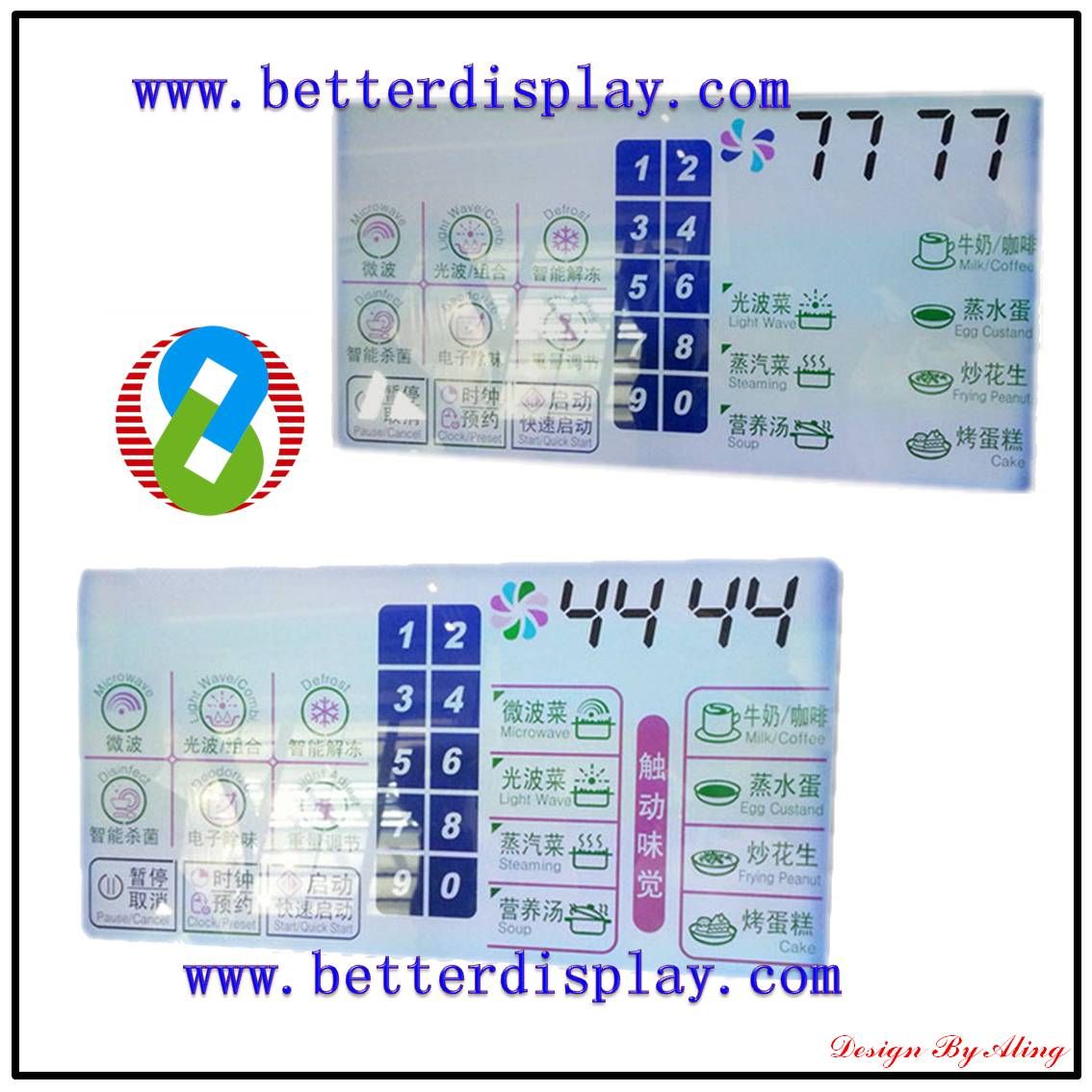

Al LCD Screen Customized 8 Color LCD Display for Air Conditioner Micro-Wave Oven LCD

Al LCD Screen Customized 8 Color LCD Display for Air Conditioner Micro-Wave Oven LCD
Price: US $ 0.1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: A10-17
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Brightness: Fresh Color
LCD Drive Mode: Multiplex Drive LCD Module
Touch Screen Type: Capacitive
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
Digital LCD Module Type: Counting Module
Type: Graphic
Display Technology: FSTN/CSTN
Usage: Notebook LCM
Viewing Angle: TN+FILM
Response Time: 1ms
Customized: Customized

Product Description

Specifications
Applied: For instrument /Equipment
Product name: LCD polarizer Graphic LCD module
Brand Name: Better
Cerificate: Rohs
Manufacturing Experience: 20 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC Heat seal
Cob Cog Cof
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY
Backlight (Custmer Design ): Yellow Green Blue Amble red, green blue, violet, yellow
Controller: SPLC780/KS0066U or eqv.
Backlight: EL, LED, CCFL


TN STN FSTN
Main parameters concerned:
(1, Outline size, viewing area, connection style
(2, What to display? !
(3, How to drive?

Standard character modules
Whole product series for 8*2 / 16*1/ 16*2/16*4/20*2/ 20*4/ 40*2/ 40*4 characters each in ther format or 5*8 dot matrix

Standard graphic modules
Including 96*26 dots 122*32dots 128*32 dots, 128*64 dots 192*64 dots, 160*160 dots, 240*128 dots, 240*160 dots, 320*240 dots series, suitable for graphic display.

Segment lcd modules
(1, Module structures: Such as outline size, positioning holes viewing area, etc
(2, Wwhat kind of backlight to use
(3, what to display, elements to be displayed
(4, Driver to be used, and in which protocol for data transfer.

Dot matrix lcd modules
(1, Module structures: Such as outline size, positioning holes viewing area, etc
(2, what kind of backlight to use
(3, what to display, elements to be displayed
(4, Driver to be used, and in which protocol for data transfer.


***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen

Packaging & Delivery:
Packaging Detail: Sdandard package for alphanumeric lcd: Anstatic tray or EPE cotton inside, carton outside
Delivery Detail: Alphanumeric lcd lead time is 3.5weeks. Urgent order is 20days
Items per Carton: 1 Pieces/Carton
Package Measurements: 16X12X13 cm
Gross Weight: 0.5 kg
Package Type: Natural packaging

Strength:
1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ

Welcome to our website for more information: (www.betterdisplay.com)

Customized LCD
For advice regarding suitable display for your applications, please contact us, we will be more than happy to assist.

Matters needing attention
1, LCD screen as glass, careful handling, so as to avoid rupture.
2, LCD screen as glass, careful handling, so as to avoid rupture.
3, Numerical correctly connected power do not exceed the prescribed specification.
4, Connection cannot be reversed, then reverse easily burned out board, the impact on the quality of the products.
5, The drive plate for electronic products, the operation should pay attention to anti static, so as not to affect the product performance.

Standard product warranty
1, The drive plate is guaranteed for two years, except for man-made damage, after the insurance products of charge repair.
2, Liquid crystal screen a one-year warranty, except for man-made damage, repair products need to charge.
Pin NO. Symbol Function Remark
1 Vss
Power Supply
0V
2 Vdd +5V
3 Vo For LCD Variable
4 RS Register Select (H: Data L: Instruction)
5 R/W L:MPU to LCM H:LCM to MPU
6 E Enable
7-14 DB0-DB7 Data Bit 0-7
15 CS1 Chip Select 1
16 CS2 Chip Select 2
17 /RST RESET
18 Vee Negative Power Supply
19 NC/A Anode of LED Unit
20 NC/K Cathode of LED Unit

Model Content
CharsXLines
Module size
W x H(mm)
View area
W x H(mm)
Dot size
W x H(mm)
Character size W x H(mm) Driving Method Controller LSI or Equiv IC
Package
STN-TYPE FSTN-TYPE
8D-C0802A 8X2 84.0X44.0 63.0X25.0 1.15X1.36 6.07X11.56 1/16 S6A0069 COB Y Y
8D-C0802B 8X2 58.0X32.0 38.0X16.0 0.56X0.66 2.95X5.56 1/16 S6A0069 COB Y Y
8D-C1202A 12X2 55.7X32.0 46.7X17.5 0.45X0.6 2.65X5.5 1/16 S6A0069 COB Y Y
8D-C1601A 16X1 80.0X36.0 64.5X13.8 0.55X0.65 3.2X5.95 1/16 S6A0069 COB Y Y
8D-C1601B 16X1 122.0X33.0 99.0X13.0 0.92X1.1 4.84X8.06 1/16 S6A0069 COB Y Y
8D -C1601C 16X1 80.0X36.0 64.5X13.8 0.6X0.7 3.2X8.2 1/11 S6A0069 COB Y Y
8D -C1601D 16X1 85.0X28.0 65.0X16.0 0.55X0.75 3.07X6.56 1/16 S6A0069 COB Y Y
8D -C1601E 16X1 80.0X36.0 64.5X13.8 0.55X0.75 3.07X6.56 1/16 S6A0069 COB Y Y
8D -C1602A 16X2 80.0X36.0 64.5X13.8 0.55X0.5 2.95X4.35 1/16 S6A0069 COB Y Y
8D -C1602B 16X2 122.0X44.0 99.0X24.0 0.92X1.1 4.84X9.66 1/16 S6A0069 COB Y Y
8D -C1602C 16X2 80.0X36.0 64.5X15.5 0.55X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D -C1602D 16X2 84.0X44.0 64.5X15.5 0.55X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D -C1602E 16X2 85.0X36.0 64.5X15.5 0.56X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D -C1602F 16X2 72.0X36.0 64.5X15.5 0.56X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D -C1604A 16X4 87.0X60.0 62.0X25.6 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y
8D -C2001A 20X1 116.0X37.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D -C2002A 20X2 98.0X60.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D -C2002B 20X2 116.0X37.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D -C200C 20X2 146.0X43.0 123.0X23.0 0.92X1.1 0.98X1.17 1/16 S6A0069 COB Y Y



CHARACTER / GRAPHIC TYPE LCD MODULES


Model Content
 (W X H)
Module size
W x H(mm)
View area
W x H(mm)
Dot size
W x H(mm)
Dot pitch
W x H(mm)
Driving Method Controller LSI or Equiv IC
Package
STN-TYPE FSTN-TYPE
8D -C2004A 20X4 98.0X60.0 76.0X25.2 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y
8D -C2004B 20X4 77.0X47.0 60.0X22.0 0.42X0.46 2.3X4.03 1/16 S6A0070 COB Y Y
8D -C2004C 20X4 146.0X62.5 123.5X43.0 0.92X1.1 4.84X9.22 1/16 S6A0069 COB Y Y
8D -C2402A 24X2 118.0X36.0 93.5X16.0 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D -C2402B 24X2 208.0X40.0 178.0X23.0 1.16X1.16 6.0X9.63 1/16 S6A0069 COB Y Y
8D -C4001A 40X1 182.0X33.5 154.4X16.5 0.6X0.75 3.2X6.35 1/16 S6A0069 COB Y Y
8D -C4002B 40X2 182.0X33.5 154.4X16.5 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D C4004A 40X4 190.0X54.0 147.0X29.5 0.5X0.55 2.78X4.89 1/16 S6A0069 COB Y Y
8D -G12232A 122X32 84.0X44.0 60.0X18.5 0.4X0.4 0.44X0.44 1/32 SED1520 COB Y Y
8D -G12232B 122X32 80.0X36.0 55.0X18.5 0.36X0.41 0.4X0.45 1/32 SED1520 COB Y Y
8D -G12232C 122X32 98.0X60.0 76.0X25.2 0.53X0.61 0.57X0.65 1/32 SED1520 COB Y Y
8D -G12232D 122X32 80.2X47.4 76.0X25.2 0.53X0.61 0.57X0.65 1/32 SED1520 COB Y Y
8D -G12864A 128X64 78.0X70.0 62.0X44.0 0.39X0.55 0.44X0.6 1/64 S6B0108A COB Y Y
8D -G12864B 128X64 105.0X60.5 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108A COB Y Y
8D -G12864C 128X64 93.0X70.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108A COB Y Y
8D -G12864D 128X64 113.0X65.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108A COB Y Y
8D -G12864E 128X64 93.0X70.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 ST7920 COB Y Y
8D -G19264A 192X64 130X65.0 104.0X39.0 0.46X0.46 0.51X0.51 1/64 S6B0108A COB Y Y
8D -G19264B 192X64 120X62.0 104.0X39.0 0.46X0.46 0.51X0.51 1/64 S6B0108A COB Y Y
8D -G24064B 240X64 180.0X65.0 132.0X39.0 0.53X0.53 0.49X0.49 1/64 T6963C QFP/COB Y Y
8D -G240128A 240X128 144X104 114X64 0.4X0.4 0.45X045 1/128 T6963C QFP/COB Y Y
