| Prod Model: |
SMC-30A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
SANYO |
| Water Pump: |
Yuanli |
| Electronic Device: |
Scheider |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Air-Cooled |

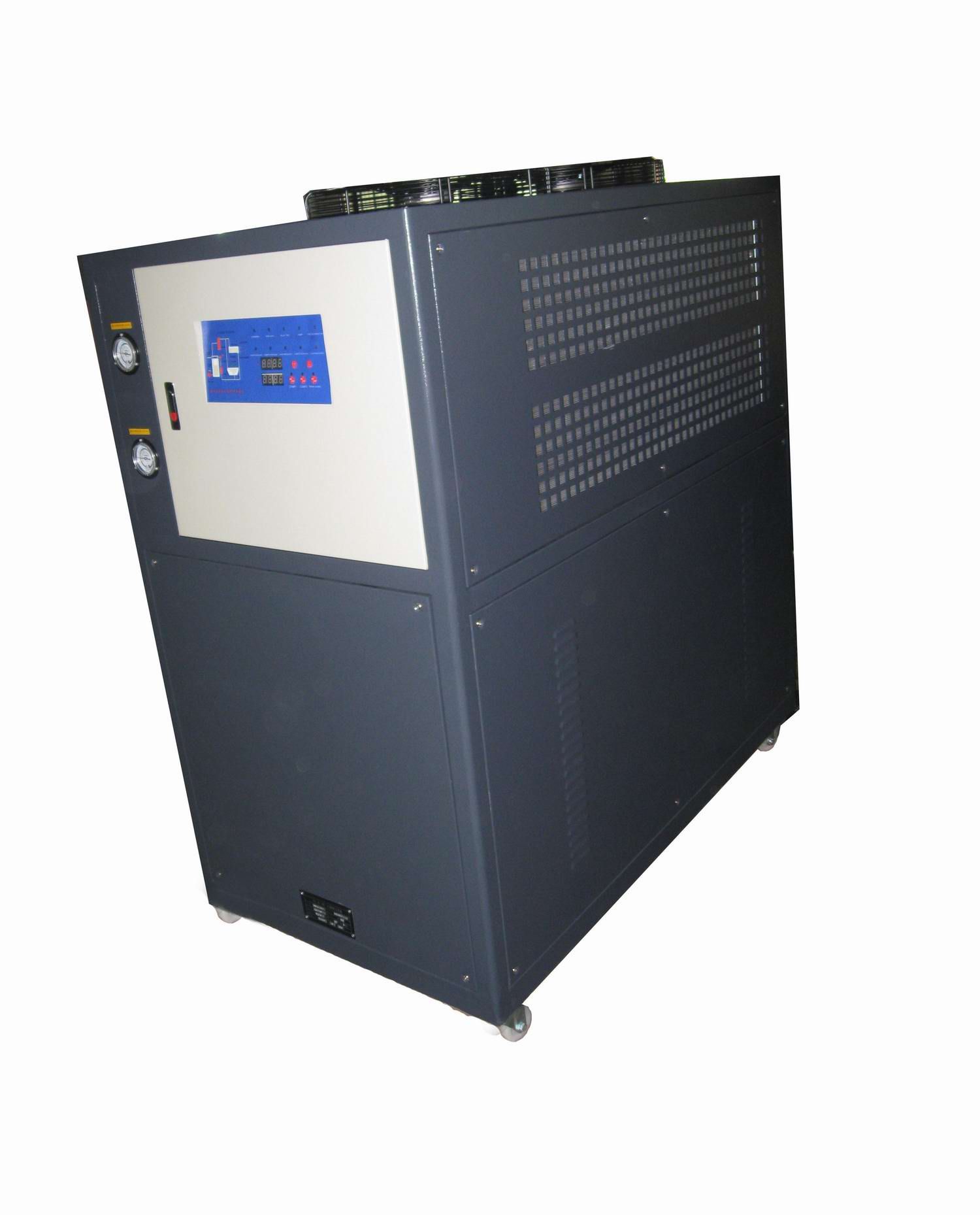

Product Description
Feature:1, Designed with imported compressor and water pump for ultra-powerful refrigeration, with prolonged service life;

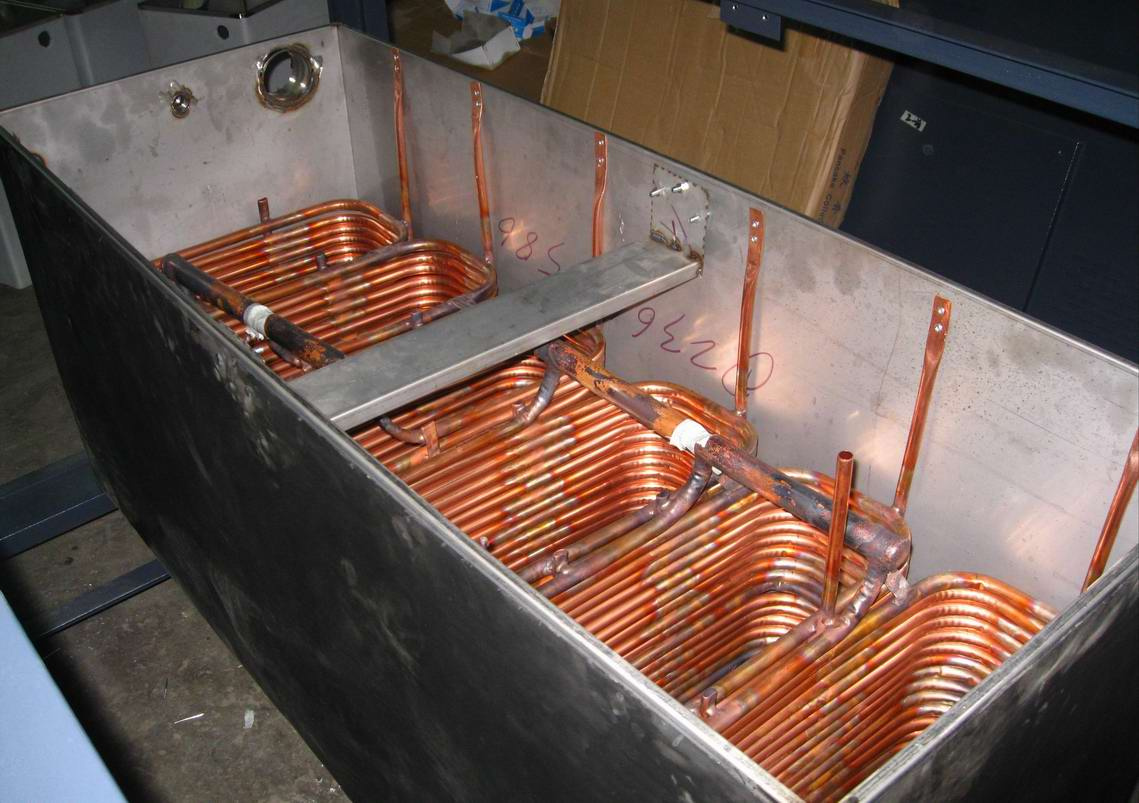

2, High-efficiency evaporator and condenser realizing rapid thermal transfer; 3)Open-type stainless steel water tank, easy and fast to clean and maintain;

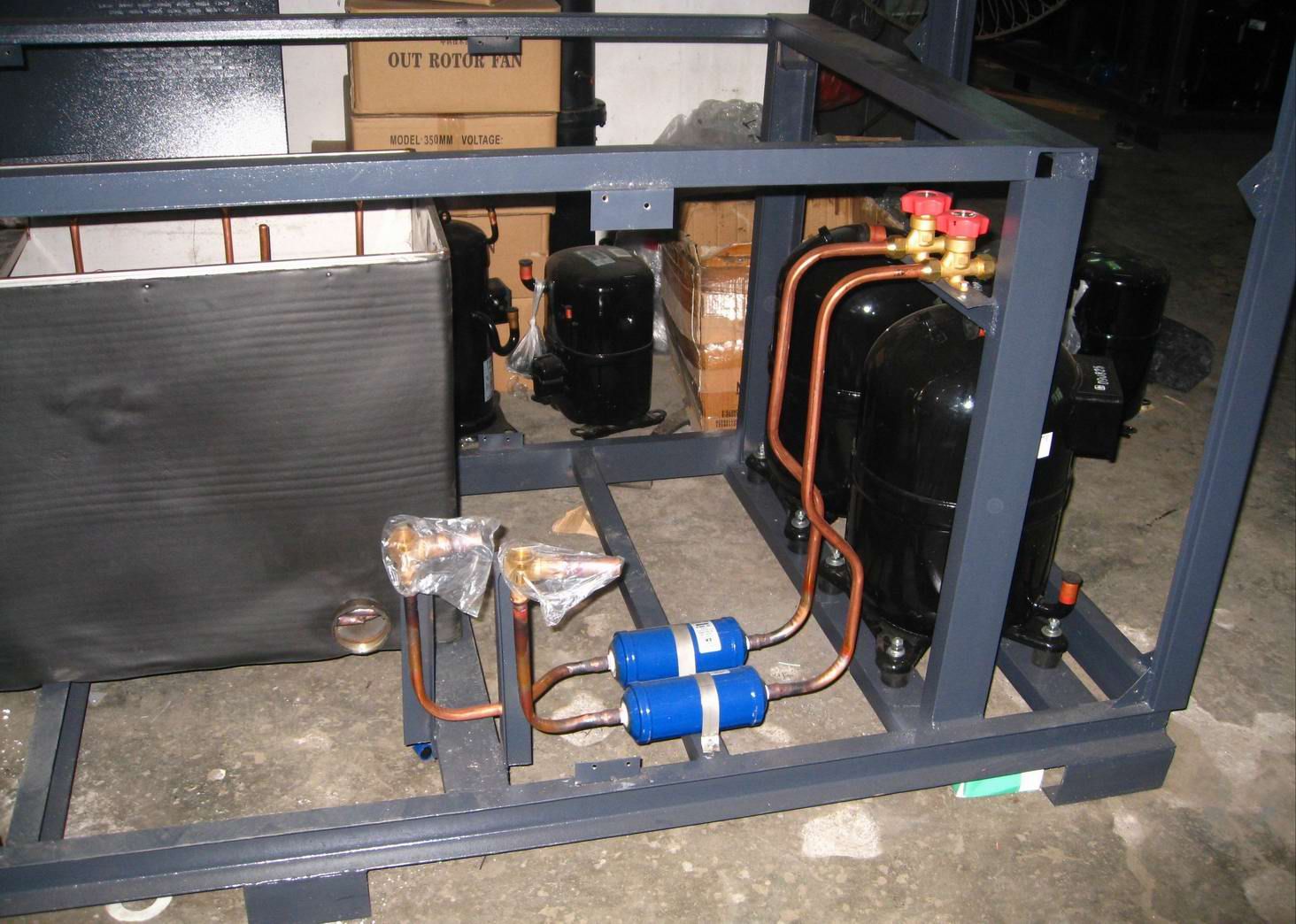

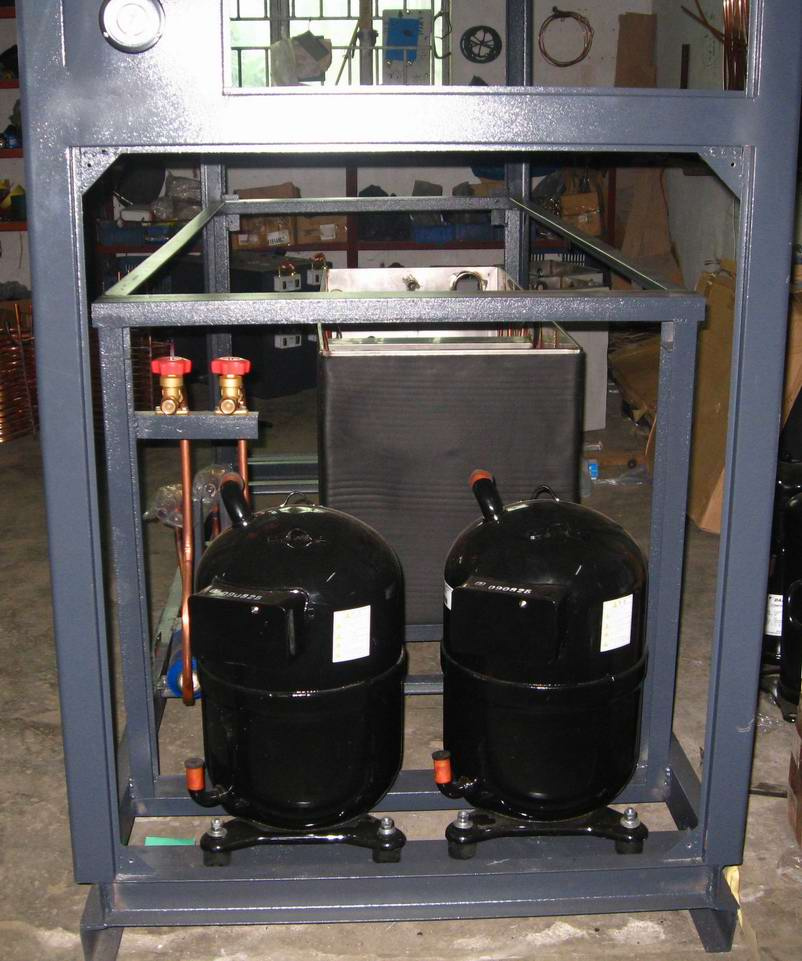

3, Double-compressor design to save energy and power;
4, Well-structured safety protection and trouble indication system;
5, Microcomputer touch-type control, accurate temperature control and simple operation.
Safety protection system: No total power circuit breaker, Compressor overload protection
Circulating pump overload protection, Anti-phase and open phase protection
*can work independently without cooling tower.
|
MODEL |
UNIT |
SMC-03A |
SMC-05A |
SMC -08A |
SMC-10A |
SMC-15A |
SMC-20A |
SMC-25A |
SMC-30A |
SMC-40A |
SMC-50A |
|
Cooling Capacity |
WATTS |
8250 |
11324 |
20540 |
28400 |
43100 |
58600 |
69700 |
86200 |
117200 |
139400 |
|
BTU/HR |
29000 |
38650 |
77300 |
97000 |
147200 |
199850 |
237700 |
294400 |
399700 |
476000 |
|
KCAL/HR |
7308 |
9740 |
19480 |
24444 |
37094 |
50362 |
59900 |
74189 |
100724 |
119952 |
|
Refrigerant Type |
R22 |
|
Compressor Motor |
KW |
2.2 |
3.3 |
6 |
7.5 |
11.25 |
15 |
18.5 |
22.5 |
30 |
37.5 |
|
HP |
3HP |
4.5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Condenser Fan Flow Rate(A) |
CHM |
2390 |
3900 |
7800 |
9200 |
12600 |
18900 |
18900 |
23400 |
31200 |
39000 |
|
Fan DiaΦ |
MM |
300*2 |
400*2 |
450*2 |
500*2 |
500*3 |
550*3 |
Φ 600*3 |
Φ 630*3 |
Φ 500*6 |
Φ 500*8 |
|
Fan Power |
WATTS |
74W*2 |
145W*2 |
273W*2 |
273W*2 |
382W*3 |
614W*3 |
708W*3 |
795W*3 |
708W*6 |
708W*6 |
|
Water Tank capacity |
LITER |
65 |
65 |
140 |
220 |
380 |
500 |
500 |
520 |
630 |
800 |
|
Water Pump |
HP |
1/2 |
1/2 |
1 |
1 |
2 |
2 |
3 |
5 |
7.5 |
7.5 |
|
KW |
0.37 |
0.37 |
0.75 |
0.75 |
1.5 |
1.5 |
2.2 |
3.75 |
5.62 |
5.62 |
|
Flow Rate |
L/MIN |
50-100 |
50-100 |
100-200 |
100-200 |
160-320 |
160-320 |
250-500 |
400-800 |
630-1200 |
630-1200 |
|
Running Current |
AMP |
6 |
9 |
13 |
15 |
27 |
38 |
45 |
58 |
75 |
95 |
|
Insulation Material |
POLY-FOAM TAPE RUBBERIZED TUBU INSULATION |
|
Dimension L*W*H |
MM |
1100*615*1080 |
1100*615*1080 |
1380*750*1450 |
1480*750*1450 |
1700*1100*1750 |
1800*1100*1750 |
1830*860*1900 |
1980*860*1950 |
2300*1800*1980 |
2550*1800*2100 |
|
Net Weight |
KG |
155 |
155 |
320 |
420 |
600 |
730 |
780 |
920 |
1050 |
1100 |
